Wall Power Adaptor 13v 2a
XSG1302000

Power Adapter
Battery Charger
Update
contact-now download
  • Technical Data

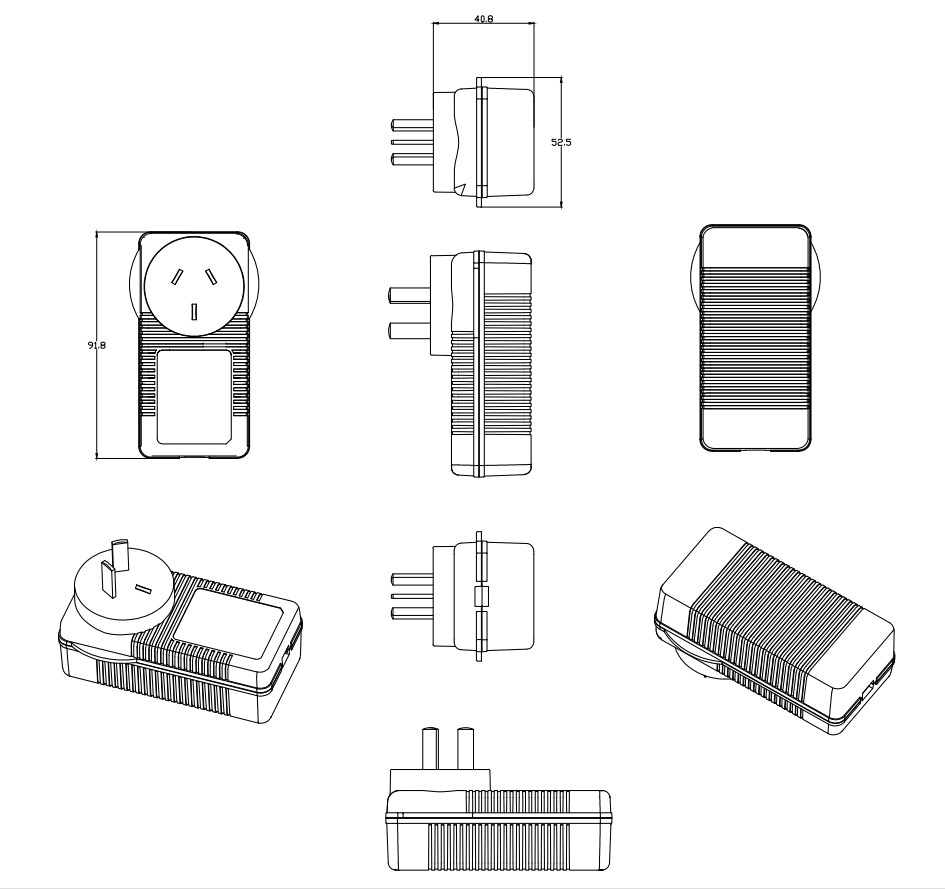

  • Drawing
  • Model List
  • Packing
Electric Parameter
AC input  Input Voltage range: 90～264Vac
Reted input voltage: 100～240Vac
InputFrequency Range: 47～62hz
Input current max: 0.6A
Inrush current: 35A Max/240V
Efficiency: >87.4%
No load input power <0.1W
Leakage current: <0.25mA/240V
DC output Output voltage: 13V
Output voltage tolerance: 5%
Rated output current: 2A
Output current: 0～2A
Ripple and noise: <80mVp-p
CV or CC Optional
Current limited: Optional
LED indicator Green color
Protection Over current protection PASS
Over voltage protection
Short circuit protection
Over Temp protection
Environment Operating Temp: 0℃～+45℃
Storage Temp: -30℃～+70℃
Relative Humidity: 10%～90%
Vibration and shock Meet MIL-STD-810D
Safety Safety standard EN60950,EN61558,EN60335
EMC/EMI Meet FCC CLASS B,EN55022 CLASS B.
EMS EN61000－4－2
EN61000－4－3
EN61000－4－4
EN61000－4－5
A Harmonic source  Pass
HI-pot: Primary to Secondary 3KVAC,5mA,60s
Drop Test As per UL regulation
Burning test 100%,4-5 hours
Energy efficiency level CEC level VI, Doe VI
Life MTBF 50000 hours
Warranty 3 years

Wall Power Adaptor 13v 2a
MODEL INPUT VAC OUTPUT W OUTPUT V OUTPUT mA
XSG1300300 100～240 3.9 13 300
XSG1300400 100～240 5.2 13 400
XSG1300500 100～240 6.5 13 500
XSG1300600 100～240 7.8 13 600
XSG1300700 100～240 9.1 13 700
XSG1300800 100～240 10.4 13 800
XSG1300900 100～240 11.7 13 900
XSG1301000 100～240 13.0 13 1000
XSG1301500 100～240 19.5 13 1500
XSG1302000 100～240 26.0 13 2000
XSG1302500 100～240 32.5 13 2500
XSG1303000 100～240 39.0 13 3000
XSG1303500 100～240 45.5 13 3500
XSG1304000 100～240 52.0 13 4000
XSG1304500 100～240 58.5 13 4500
XSG1305000 100～240 65.0 13 5000
XSG1305500 100～240 71.5 13 5500
XSG1306000 100～240 78.0 13 6000
XSG1306500 100～240 84.5 13 6500
XSG1307000 100～240 91.0 13 7000
XSG1307200 100～240 93.6 13 7200
XSG1307500 100～240 97.5 13 7500
XSG1308000 100～240 104.0 13 8000
XSG1308500 100～240 110.5 13 8500
XSG1309000 100～240 117.0 13 9000
XSG1309500 100～240 123.5 13 9500
XSG13010000 100～240 130.0 13 10000
XSG13011000 100-240 143.0 13 11000
1PCS/BOX, 75BOX/CTN, CTN SIZE:460*330*295mm
0.3KG/BOX, TOTAL WEIGHT: 22.5KGS/CTN
