Desktop DC Power Supply 24V 20A SMPS with UL CE PSE KC SAA Certifications
XSG24020000

  • Technical Data

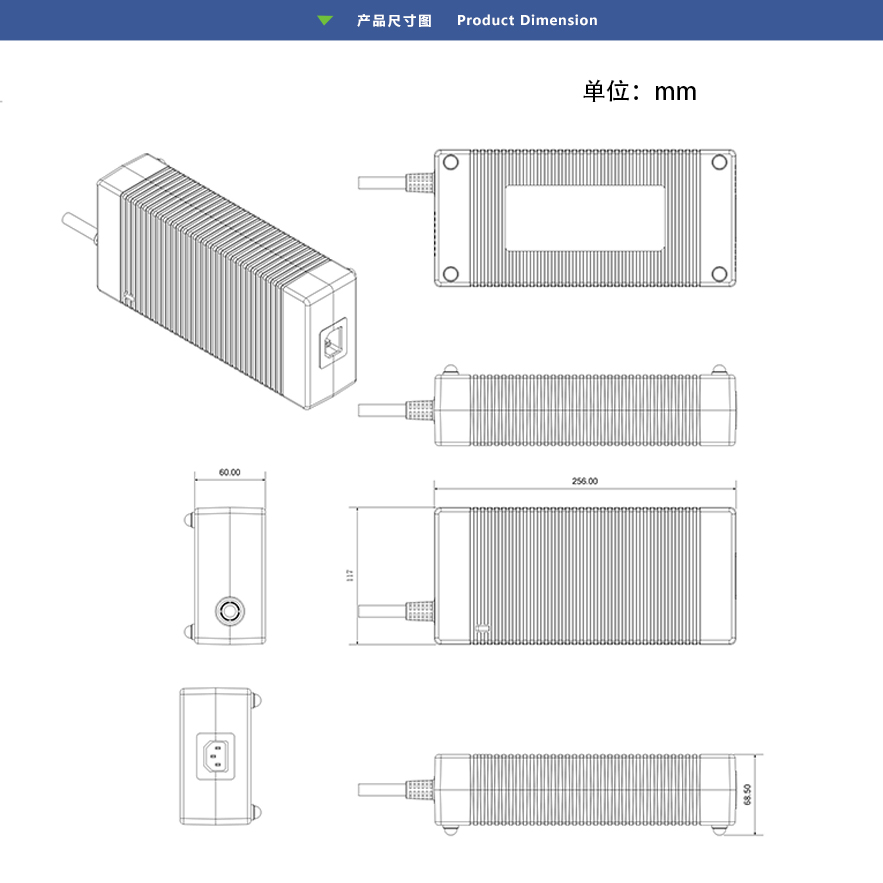

  • Drawing
  • Model List

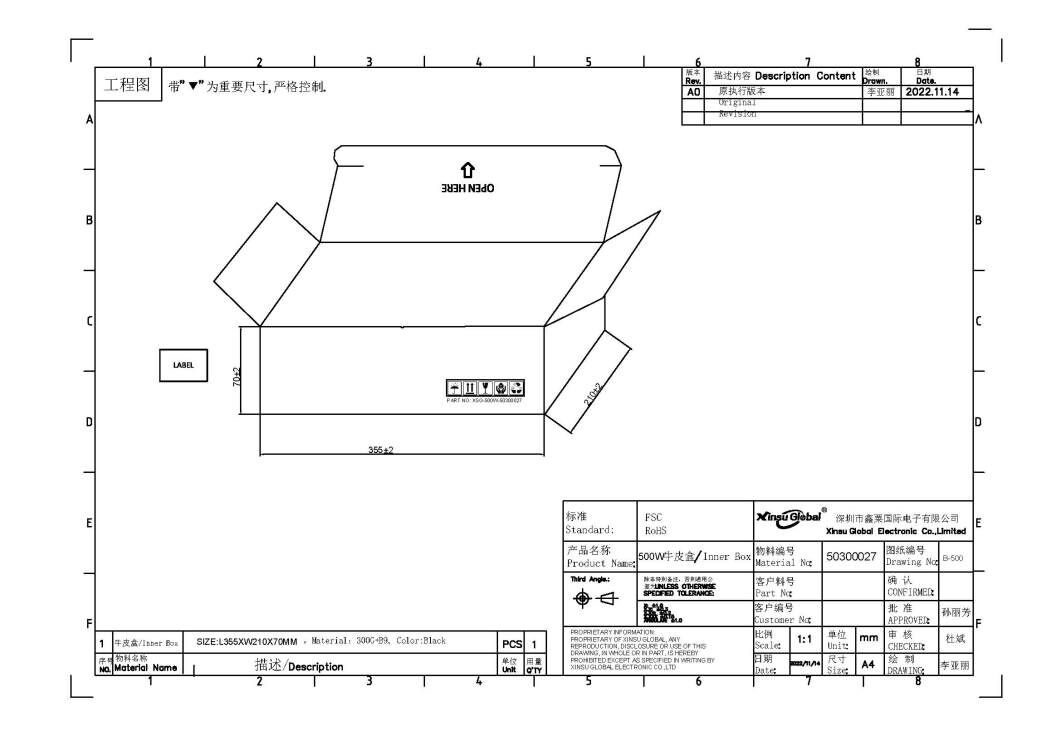

  • Packing

Electric Parameter

AC input

Input Voltage range:

90264Vac



Reted input voltage:

100240Vac



InputFrequency Range:

4762hz



Input current max:

10A



Inrush current:

170A Max/240V



Efficiency:

≥90%



No load input power

≤0.5W



Leakage current:

<0.75mA/240V



DC output

Output voltage:

24V



Output voltage tolerance:

±5%



Rated output current:

20A



Output current:

020A



Ripple and noise max:

300mVp-p



CV or CC

Optional



Current limited:

Optional



LED indicator

Green color



Protection

Over current protection

PASS



Over voltage protection



Short circuit protection



Over Temp protection



Environment

Operating Temp:

0+45



Storage Temp:

-30+70



Relative Humidity:

10%90%



Vibration and shock

Meet MIL-STD-810D



Safety

Safety standard

EN62368,EN61558,EN60335



EMC/EMI

Meet FCC CLASS B,EN55022 CLASS B.



EMS

EN6100042



EN6100043



EN6100044



EN6100045



A Harmonic source

Pass



HI-pot: Primary to Secondary

3KVAC,5mA,60s



Drop Test

As per UL regulation



Burning test

100%,4-5 hours



Energy efficiency level

CEC level VI, Doe VI



Life

MTBF

50000 hours



Warranty

3 years




Model Name Rated output voltage range (VDC) Rated output current range (mA) Max. output power                    (W)
XSECxxxyyyyzz,
XSGxxxyyyyzz,
XSExxxyyyyzz,
XSECxxxyyyyyzz,
XSGxxxyyyyyzz,
XSExxxyyyyyzz,
XSECxxxyyyy,
XSGxxxyyyy,
XSExxxyyyy,
XSECxxxyyyyy,
XSGxxxyyyyy,
XSExxxyyyyy
12.0-16.8 25000-30000 420
16.9-23.9 20000-25000 478.0
24.0-38.0 12000-20000 456
38.1-58.0 8000-12000 464
58.1-88.0 5500-8000 484
