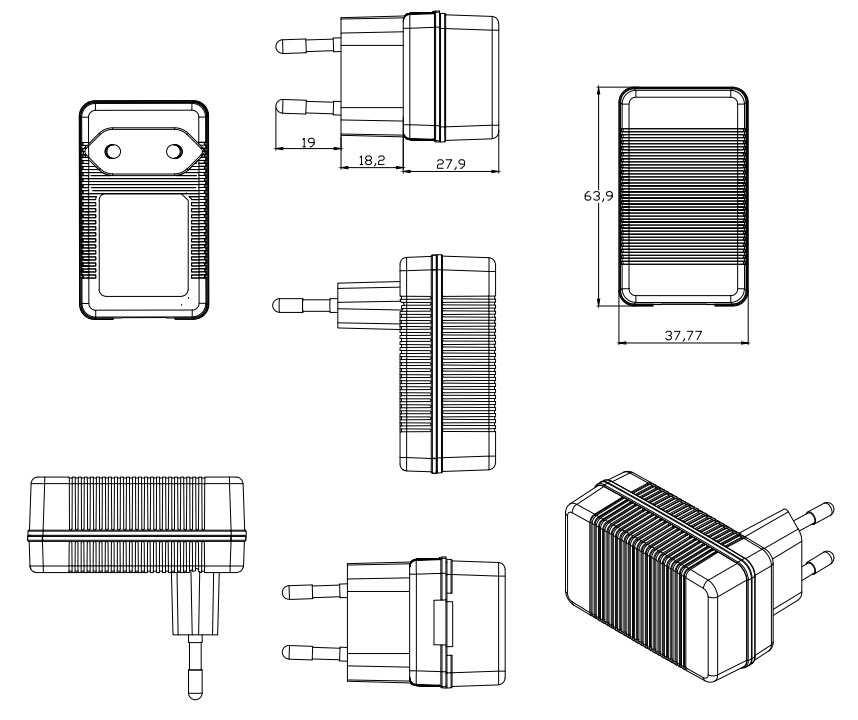

- Drawing
- Model List
- Packing
|
AC DC Adapter Transformer 5V 0.5A With Interchangeable Plug Multi Sockets Electric
Parameter
|
|
AC input
|
Input Voltage range:
|
90～264Vac
|
|
Reted input voltage:
|
100～240Vac
|
|
InputFrequency Range:
|
47～62hz
|
|
Input current max:
|
0.6A
|
|
Inrush current:
|
35A Max/240V
|
|
Efficiency:
|
>68%
|
|
No load input power
|
<0.1W
|
|
Leakage current:
|
<0.25mA/240V
|
|
DC output
|
Output voltage:
|
5V
|
|
Output voltage tolerance:
|
5%
|
|
Rated output current:
|
0.5A
|
|
Output current:
|
0～0.5A
|
|
Ripple and noise:
|
<80mVp-p
|
|
CV or CC
|
Optional
|
|
Current limited:
|
Optional
|
|
LED indicator
|
Green color
|
|
Protection
|
Over current
protection
|
PASS
|
|
Over voltage protection
|
|
Short circuit protection
|
|
Over Temp protection
|
|
Environment
|
Operating Temp:
|
0℃～+45℃
|
|
Storage Temp:
|
-30℃～+70℃
|
|
Relative Humidity:
|
10%～90%
|
|
Vibration and shock
|
Meet MIL-STD-810D
|
|
Safety
|
Safety standard
|
EN60950,EN61558,EN60335
|
|
EMC/EMI
|
Meet FCC CLASS
B,EN55022 CLASS B.
|
|
EMS
|
EN61000－4－2
|
|
EN61000－4－3
|
|
EN61000－4－4
|
|
EN61000－4－5
|
|
A Harmonic source
|
Pass
|
|
HI-pot: Primary to Secondary
|
3KVAC,5mA,60s
|
|
Drop Test
|
As per UL regulation
|
|
Burning test
|
100%,4-5 hours
|
|
Energy efficiency level
|
CEC level VI, Doe VI
|
|
Life
|
MTBF
|
50000 hours
|
|
Warranty
|
3 years
|
|
MODEL
|
INPUT VAC
|
OUTPUT W
|
OUTPUT V
|
OUTPUT mA
|
|
XSEC0500300
|
100～240
|
1.5
|
5
|
300
|
|
XSEC0500400
|
100～240
|
2.0
|
5
|
400
|
|
XSEC0500500
|
100～240
|
2.5
|
5
|
500
|
|
XSEC0500600
|
100～240
|
3.0
|
5
|
600
|
|
XSEC0500700
|
100～240
|
3.5
|
5
|
700
|
|
XSEC0500800
|
100～240
|
4.0
|
5
|
800
|
|
XSEC0500900
|
100～240
|
4.5
|
5
|
900
|
|
XSEC0501000
|
100～240
|
5.0
|
5
|
1000
|
|
XSEC0501200
|
100～240
|
6.0
|
5
|
1200
|
|
XSEC0501500
|
100～240
|
7.5
|
5
|
1500
|
|
XSEC0501750
|
100～240
|
8.8
|
5
|
1750
|
|
XSEC0502000
|
100～240
|
10.0
|
5
|
2000
|
|
XSEC0502100
|
100～240
|
10.5
|
5
|
2100
|
|
XSEC0502500
|
100～240
|
12.5
|
5
|
2500
|
|
XSEC0503000
|
100～240
|
15.0
|
5
|
3000
|
|
XSEC0503500
|
100～240
|
17.5
|
5
|
3500
|
|
XSG0504000
|
100～240
|
20.0
|
5
|
4000
|
|
XSG0504500
|
100～240
|
22.5
|
5
|
4500
|
|
XSG0505000
|
100～240
|
25.0
|
5
|
5000
|
|
XSG0505500
|
100～240
|
27.5
|
5
|
5500
|
|
XSG0506000
|
100～240
|
30.0
|
5
|
6000
|
|
XSG0506500
|
100～240
|
32.5
|
5
|
6500
|
|
XSG0507000
|
100～240
|
35.0
|
5
|
7000
|
|
XSG0507500
|
100～240
|
37.5
|
5
|
7500
|
|
XSG0508000
|
100～240
|
40.0
|
5
|
8000
|
|
XSG0508500
|
100～240
|
42.5
|
5
|
8500
|
|
XSG0509000
|
100～240
|
45.0
|
5
|
9000
|
|
XSG0509500
|
100～240
|
47.5
|
5
|
9500
|
|
XSG05010000
|
100～240
|
50.0
|
5
|
10000
|
