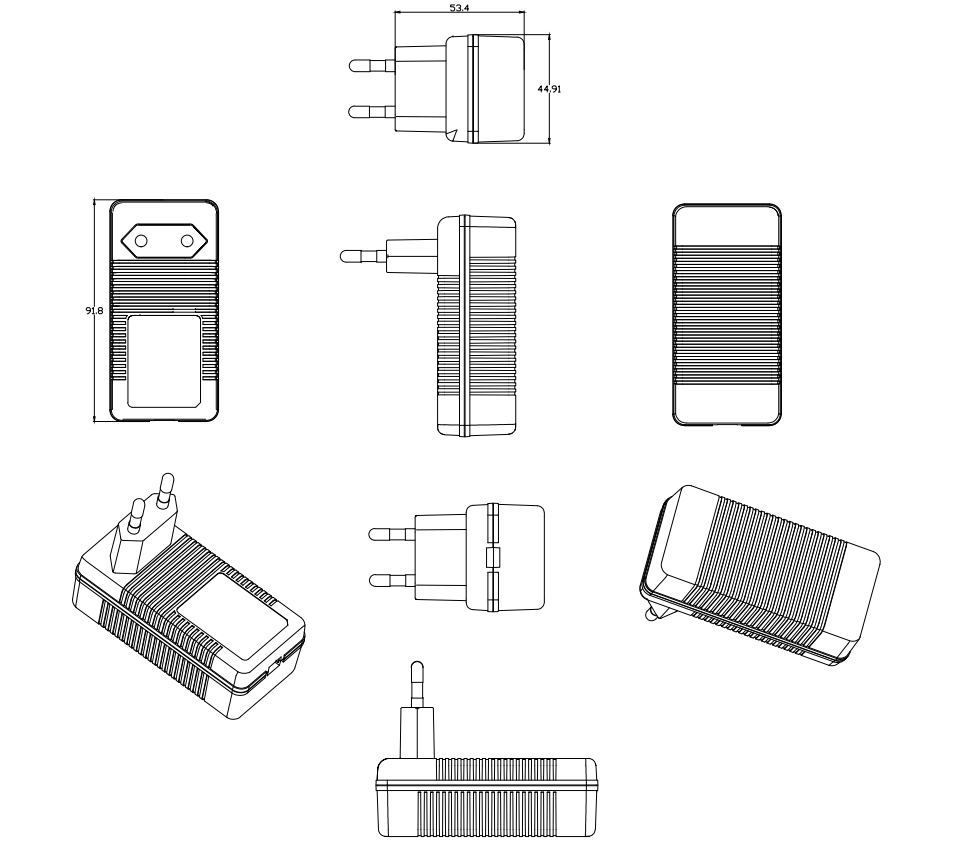

- Drawing
- Model List
- Packing
|
GS Power Supply Adapter 9v 3a AC DC Power Adapter Electric
Parameter
|
|
AC input
|
Input Voltage range:
|
90～264Vac
|
|
Reted input voltage:
|
100～240Vac
|
|
InputFrequency Range:
|
47～62hz
|
|
Input current max:
|
0.6A
|
|
Inrush current:
|
35A Max/240V
|
|
Efficiency:
|
>87.4%
|
|
No load input power
|
<0.1W
|
|
Leakage current:
|
<0.25mA/240V
|
|
DC output
|
Output voltage:
|
9V
|
|
Output voltage tolerance:
|
5%
|
|
Rated output current:
|
3A
|
|
Output current:
|
0～3A
|
|
Ripple and noise:
|
<80mVp-p
|
|
CV or CC
|
Optional
|
|
Current limited:
|
Optional
|
|
LED indicator
|
Green color
|
|
Protection
|
Over current
protection
|
PASS
|
|
Over voltage protection
|
|
Short circuit protection
|
|
Over Temp protection
|
|
Environment
|
Operating Temp:
|
0℃～+45℃
|
|
Storage Temp:
|
-30℃～+70℃
|
|
Relative Humidity:
|
10%～90%
|
|
Vibration and shock
|
Meet MIL-STD-810D
|
|
Safety
|
Safety standard
|
EN60950,EN61558,EN60335
|
|
EMC/EMI
|
Meet FCC CLASS
B,EN55022 CLASS B.
|
|
EMS
|
EN61000－4－2
|
|
EN61000－4－3
|
|
EN61000－4－4
|
|
EN61000－4－5
|
|
A Harmonic source
|
Pass
|
|
HI-pot: Primary to Secondary
|
3KVAC,5mA,60s
|
|
Drop Test
|
As per UL regulation
|
|
Burning test
|
100%,4-5 hours
|
|
Energy efficiency level
|
CEC level VI, Doe VI
|
|
Life
|
MTBF
|
50000 hours
|
|
Warranty
|
3 years
|
|
MODEL
|
INPUT VAC
|
OUTPUT W
|
OUTPUT V
|
OUTPUT mA
|
|
XSG0900300
|
100～240
|
2.7
|
9
|
300
|
|
XSG0900400
|
100～240
|
3.6
|
9
|
400
|
|
XSG0900500
|
100～240
|
4.5
|
9
|
500
|
|
XSG0900600
|
100～240
|
5.4
|
9
|
600
|
|
XSG0900700
|
100～240
|
6.3
|
9
|
700
|
|
XSG0900800
|
100～240
|
7.2
|
9
|
800
|
|
XSG0900900
|
100～240
|
8.1
|
9
|
900
|
|
XSG0901000
|
100～240
|
9.0
|
9
|
1000
|
|
XSG0901200
|
100～240
|
10.8
|
9
|
1200
|
|
XSG0901500
|
100～240
|
13.5
|
9
|
1500
|
|
XSG0901750
|
100～240
|
15.8
|
9
|
1750
|
|
XSG0902000
|
100～240
|
18.0
|
9
|
2000
|
|
XSG0902500
|
100-240
|
22.5
|
9
|
2500
|
|
XSG0903000
|
100～240
|
27.0
|
9
|
3000
|
|
XSG0903500
|
100～240
|
31.5
|
9
|
3500
|
|
XSG0904000
|
100～240
|
36.0
|
9
|
4000
|
|
XSG0904500
|
100～240
|
40.5
|
9
|
4500
|
|
XSG0905000
|
100～240
|
45.0
|
9
|
5000
|
|
XSG0905500
|
100～240
|
49.5
|
9
|
5500
|
|
XSG0906000
|
100～240
|
54.0
|
9
|
6000
|
|
XSG0906500
|
100～240
|
58.5
|
9
|
6500
|
|
XSG0907000
|
100～240
|
63.0
|
9
|
7000
|
|
XSG0907500
|
100～240
|
67.5
|
9
|
7500
|
|
XSG0908000
|
100～240
|
72.0
|
9
|
8000
|
|
XSG0908500
|
100～240
|
76.5
|
9
|
8500
|
|
XSG0909000
|
100～240
|
81.0
|
9
|
9000
|
|
XSG0909500
|
100～240
|
85.5
|
9
|
9500
|
|
XSG09010000
|
100～240
|
90.0
|
9
|
10000
|
1PCS/BOX, 75BOX/CTN, CTN SIZE:460*330*295mm
0.3KG/BOX, TOTAL WEIGHT: 22.5KGS/CTN
