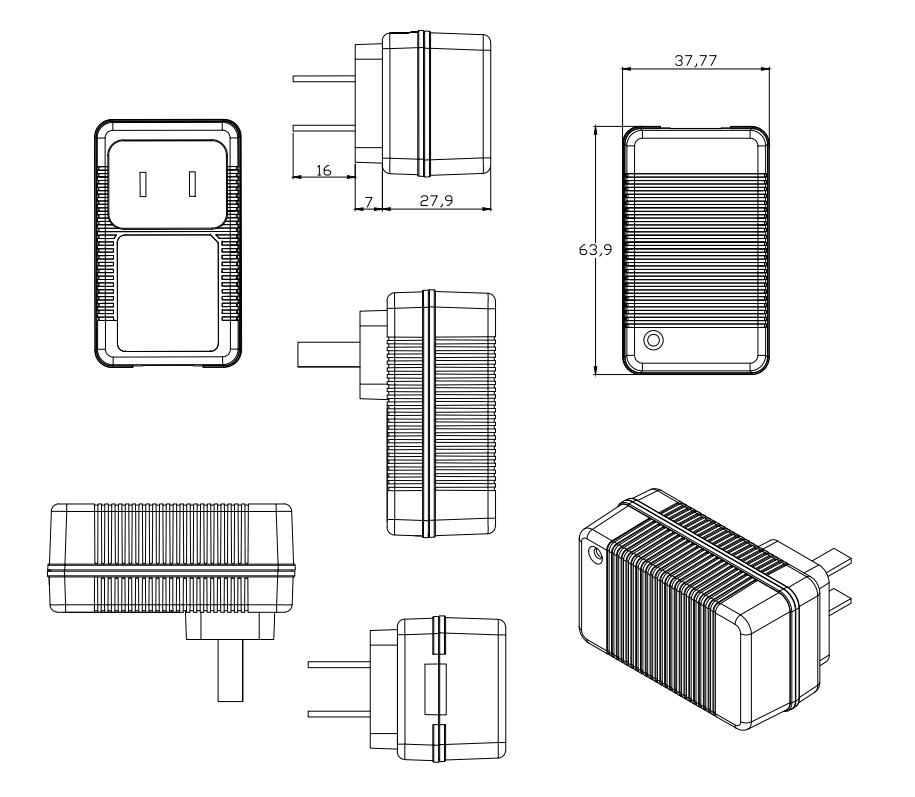

- Drawing
- Model List
- Packing
|
Electric Parameter
|
|
AC input
|
Input Voltage range:
|
90～264Vac
|
|
Reted input voltage:
|
100～240Vac
|
|
InputFrequency Range:
|
47～62hz
|
|
Input current max:
|
0.6A
|
|
Inrush current:
|
35A Max/240V
|
|
Efficiency:
|
>78.9%
|
|
No load input power
|
<0.1W
|
|
Leakage current:
|
<0.25mA/240V
|
|
DC output
|
Output voltage:
|
6V
|
|
Output voltage tolerance:
|
5%
|
|
Rated output current:
|
1.5A
|
|
Output current:
|
0～1.5A
|
|
Ripple and noise:
|
<80mVp-p
|
|
CV or CC
|
Optional
|
|
Current limited:
|
Optional
|
|
LED indicator
|
Green color
|
|
Protection
|
Over current protection
|
PASS
|
|
Over voltage protection
|
|
Short circuit protection
|
|
Over Temp protection
|
|
Environment
|
Operating Temp:
|
0℃～+45℃
|
|
Storage Temp:
|
-30℃～+70℃
|
|
Relative Humidity:
|
10%～90%
|
|
Vibration and shock
|
Meet MIL-STD-810D
|
|
Safety
|
Safety standard
|
EN60950,EN61558,EN60335
|
|
EMC/EMI
|
Meet FCC CLASS B,EN55022 CLASS B.
|
|
EMS
|
EN61000－4－2
|
|
EN61000－4－3
|
|
EN61000－4－4
|
|
EN61000－4－5
|
|
A Harmonic source
|
Pass
|
|
HI-pot: Primary to Secondary
|
3KVAC,5mA,60s
|
|
Drop Test
|
As per UL regulation
|
|
Burning test
|
100%,4-5 hours
|
|
Energy efficiency level
|
CEC level VI, Doe VI
|
|
Life
|
MTBF
|
50000 hours
|
|
Warranty
|
3 years
|
|
MODEL
|
INPUT VAC
|
OUTPUT W
|
OUTPUT V
|
OUTPUT mA
|
|
XSG0600300
|
100～240
|
1.8
|
6
|
300
|
|
XSG0600400
|
100～240
|
2.4
|
6
|
400
|
|
XSG0600500
|
100～240
|
3.0
|
6
|
500
|
|
XSG0600600
|
100～240
|
3.6
|
6
|
600
|
|
XSG0600700
|
100～240
|
4.2
|
6
|
700
|
|
XSG0600800
|
100～240
|
4.8
|
6
|
800
|
|
XSG0600900
|
100～240
|
5.4
|
6
|
900
|
|
XSG0601000
|
100～240
|
6.0
|
6
|
1000
|
|
XSG0601500
|
100～240
|
9.0
|
6
|
1500
|
|
XSG0602000
|
100～240
|
12.0
|
6
|
2000
|
|
XSG0602500
|
100～240
|
15.0
|
6
|
2500
|
|
XSG0603000
|
100～240
|
18.0
|
6
|
3000
|
|
XSG0603500
|
100～240
|
21.0
|
6
|
3500
|
|
XSG0604000
|
100～240
|
24.0
|
6
|
4000
|
|
XSG0604500
|
100～240
|
27.0
|
6
|
4500
|
|
XSG0605000
|
100～240
|
30.0
|
6
|
5000
|
|
XSG0605500
|
100～240
|
33.0
|
6
|
5500
|
|
XSG0606000
|
100～240
|
36.0
|
6
|
6000
|
|
XSG0606500
|
100～240
|
39.0
|
6
|
6500
|
|
XSG0607000
|
100～240
|
42.0
|
6
|
7000
|
|
XSG0607500
|
100～240
|
45.0
|
6
|
7500
|
|
XSG0608000
|
100～240
|
48.0
|
6
|
8000
|
|
XSG0608500
|
100～240
|
51.0
|
6
|
8500
|
|
XSG0609000
|
100～240
|
54.0
|
6
|
9000
|
|
XSG0609500
|
100～240
|
57.0
|
6
|
9500
|
|
XSG06010000
|
100～240
|
60.0
|
6
|
10000
|
