AC DC ADAPTOR 36V 1A
XSG3601000

  • Technical Data
  • Drawing
  • Model List
  • Packing
AC DC ADAPTOR 36V 1A ELECTRIC PARAMETER
AC input  Input Voltage range: 90~264Vac
Reted input voltage: 100~240Vac
InputFrequency Range: 47~62hz
Input current max: 1.3A
Inrush current: 35A Max/240V
Efficiency: >88%
No load input power <0.1W
Leakage current: <0.25mA/240V
DC output Output voltage: 36V
Output voltage tolerance: ±5%
Rated output current: 1A
Output current: 0~1A
Ripple and noise: <100mVp-p
CV or CC Optional
Current limited: Optional
LED indicator Green color
Protection Over current protection PASS
Over voltage protection
Short circuit protection
Over Temp protection
Environment Operating Temp: 0℃~+45℃
Storage Temp: -30℃~+70℃
Relative Humidity: 10%~90%
Vibration and shock Meet MIL-STD-810D
Safety Safety standard IEC62368,IEC60950,IEC61558,IEC60335
EMC/EMI Meet FCC CLASS B,EN55022 CLASS B.
EMS EN61000-4-2
EN61000-4-3
EN61000-4-4
EN61000-4-5
A Harmonic source  Pass
HI-pot: Primary to Secondary 3KVAC,5mA,60s
Drop Test As per UL regulation
Burning test 100%,4-5 hours
Energy efficiency level CEC level VI, Doe VI
Life MTBF 50000 hours
Warranty 3 years

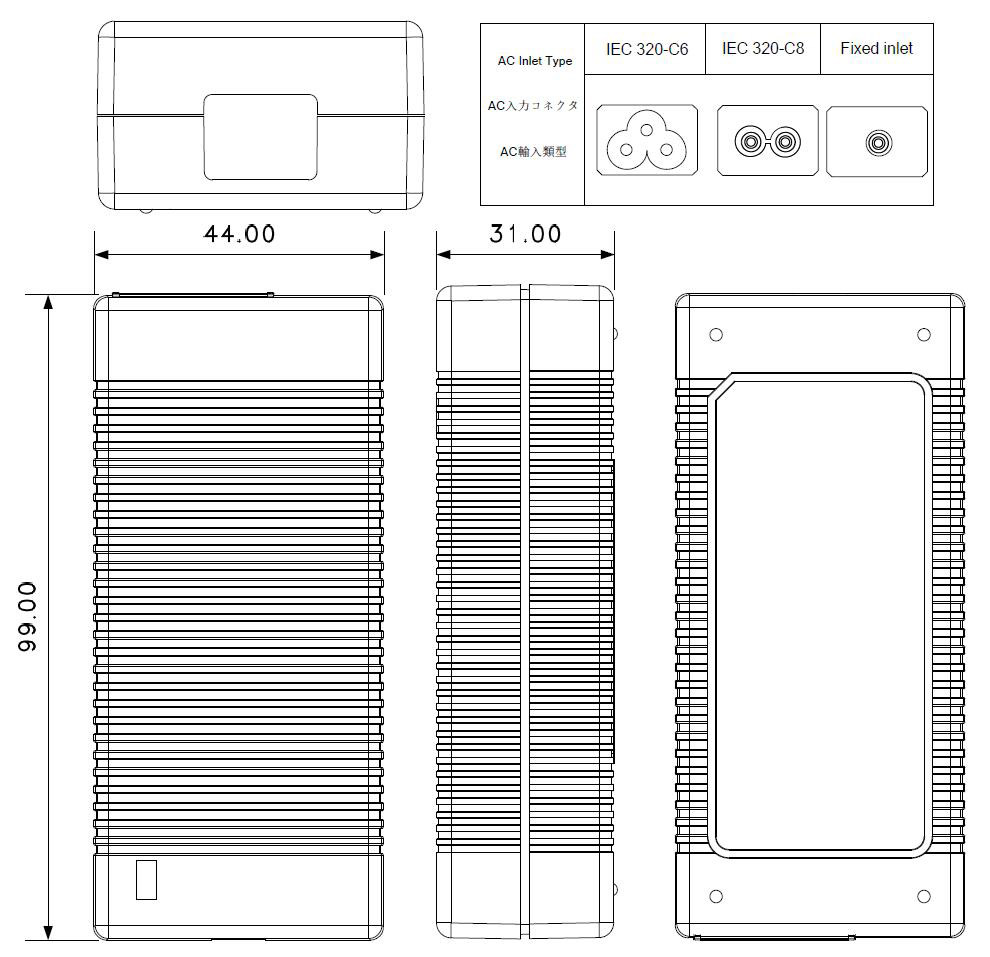

36V 1A AC POWER ADAPTER-DRAWING
MODEL INPUT VAC OUTPUT W OUTPUT V OUTPUT mA
XSG3600300 100~240 10.8 36 300
XSG3600400 100~240 14.4 36 400
XSG3600500 100~240 18.0 36 500
XSG3600600 100~240 21.6 36 600
XSG3600700 100~240 25.2 36 700
XSG3600800 100~240 28.8 36 800
XSG3600900 100~240 32.4 36 900
XSG3601000 100~240 36.0 36 1000
XSG3601250 100~240 45.0 36 1250
XSG3601500 100~240 54.0 36 1500
XSG3601750 100~240 63.0 36 1750
XSG3601800 100~240 64.8 36 1800
XSG3602000 100~240 72.0 36 2000
XSG3602500 100~240 90.0 36 2500
XSG3603000 100~240 108.0 36 3000
XSG3603500 100~240 126.0 36 3500
XSG3604000 100~240 144.0 36 4000
XSG3604500 100~240 162.0 36 4500
XSG3605000 100~240 180.0 36 5000
XSG3605500 100~240 198.0 36 5500
XSG3606000 100~240 216.0 36 6000

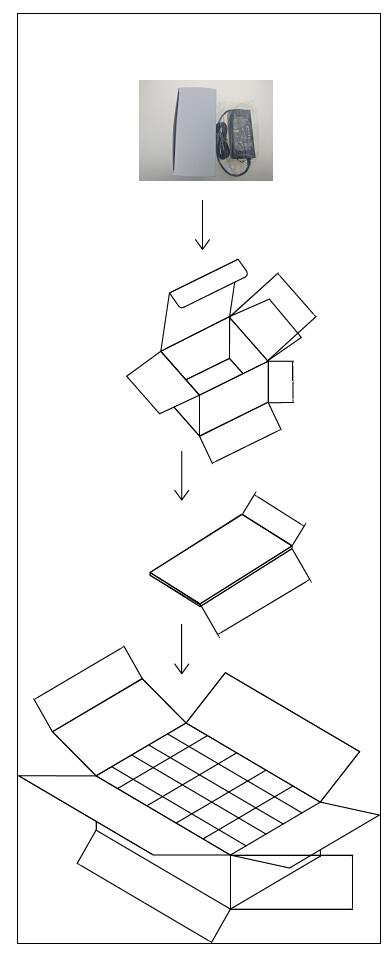

1PCS/BOX, 50BOX/CTN, CTN SIZE:315*310*370mm

0.32KG/BOX, TOTAL WEIGHT: 16KGS/CTN

12V 3A AC POWER ADAPTER-PACKING
