33V 1A POWER ADAPTER
XSG3301000

Power Adapter
Battery Charger
Update
contact-now download
  • Technical Data

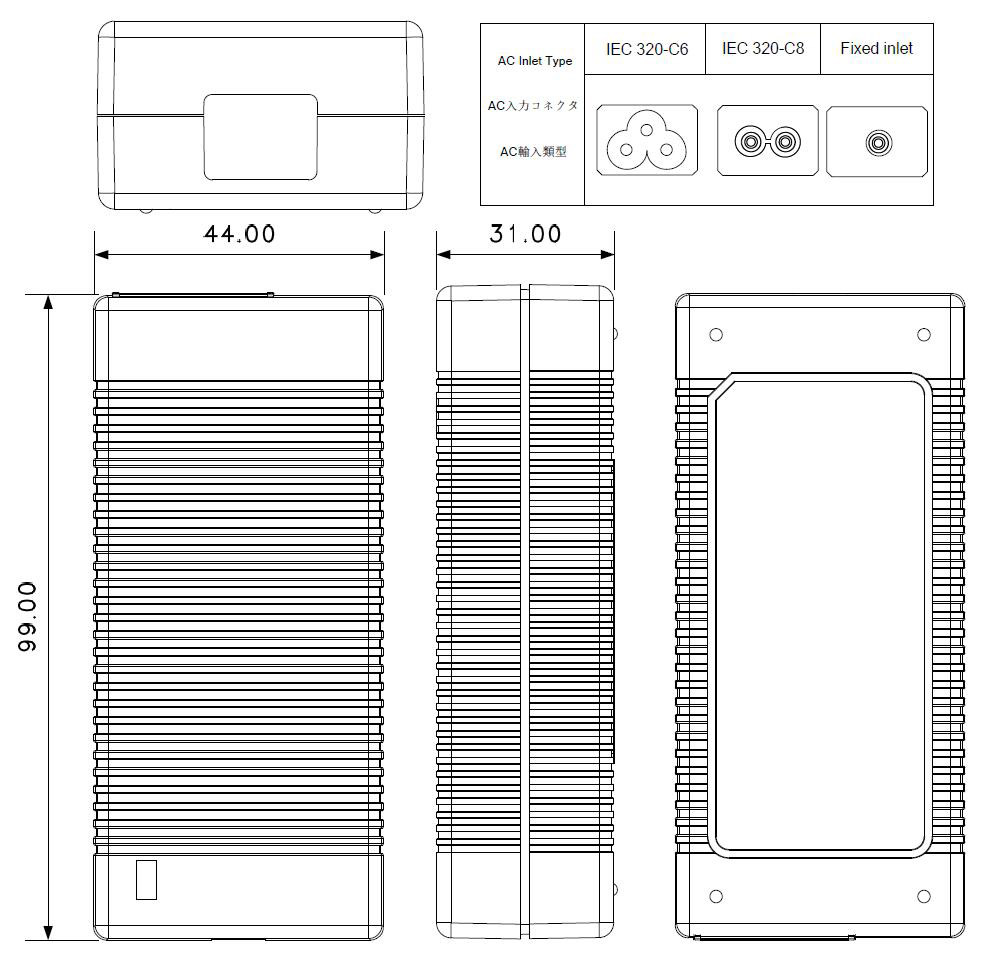

  • Drawing
  • Model List
  • Packing
Electric Parameter
AC input  Input Voltage range: 90～264Vac
Reted input voltage: 100～240Vac
InputFrequency Range: 47～62hz
Input current max: 1.3A
Inrush current: 35A Max/240V
Efficiency: >87%
No load input power <0.1W
Leakage current: <0.25mA/240V
DC output Output voltage: 33V
Output voltage tolerance: 5%
Rated output current: 1A
Output current: 0～1A
Ripple and noise: <80mVp-p
CV or CC Optional
Current limited: Optional
LED indicator Green color
Protection Over current protection PASS
Over voltage protection
Short circuit protection
Over Temp protection
Environment Operating Temp: 0℃～+45℃
Storage Temp: -30℃～+70℃
Relative Humidity: 10%～90%
Vibration and shock Meet MIL-STD-810D
Safety Safety standard EN60950,EN61558,EN60335
EMC/EMI Meet FCC CLASS B,EN55022 CLASS B.
EMS EN61000－4－2
EN61000－4－3
EN61000－4－4
EN61000－4－5
A Harmonic source  Pass
HI-pot: Primary to Secondary 3KVAC,5mA,60s
Drop Test As per UL regulation
Burning test 100%,4-5 hours
Energy efficiency level CEC level VI, Doe VI
Life MTBF 50000 hours
Warranty 3 years
33V 1A POWER ADAPTER
MODEL INPUT VAC OUTPUT W OUTPUT V OUTPUT mA
XSG3300300 100～240 9.9 33 300
XSG3300400 100～240 13.2 33 400
XSG3300500 100～240 16.5 33 500
XSG3300600 100～240 19.8 33 600
XSG3300700 100～240 23.1 33 700
XSG3300800 100～240 26.4 33 800
XSG3300900 100～240 29.7 33 900
XSG3301000 100～240 33.0 33 1000
XSG3301500 100～240 49.5 33 1500
XSG3301900 100～240 62.7 33 1900
XSG3302000 100～240 66.0 33 2000
XSG3302500 100～240 82.5 33 2500
XSG3302750 100～240 90.8 33 2750
XSG3303000 100～240 99.0 33 3000
XSG3303250 100～240 107.3 33 3250
XSG3303500 100～240 115.5 33 3500
XSG3304000 100～240 132.0 33 4000
XSG3304500 100～240 148.5 33 4500
XSG3305000 100～240 165.0 33 5000
XSG3305500 100～240 181.5 33 5500
XSG3306000 100～240 198.0 33 6000

1PCS/BOX, 50BOX/CTN, CTN SIZE:315*310*370mm

0.32KG/BOX, TOTAL WEIGHT: 16KGS/CTN
