30V 9A SMPS Power Supply for Racing Simulator 3D printer
XSG3009000

Power Adapter
Battery Charger
Update
contact-now download
  • Technical Data

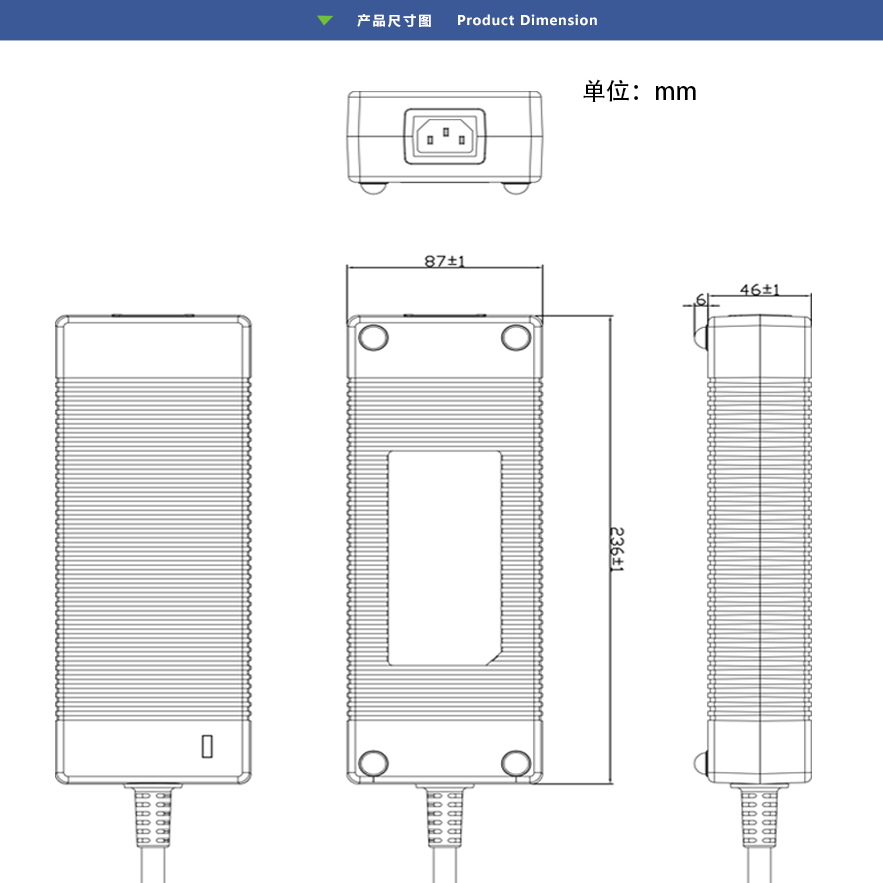

  • Drawing
  • Model List

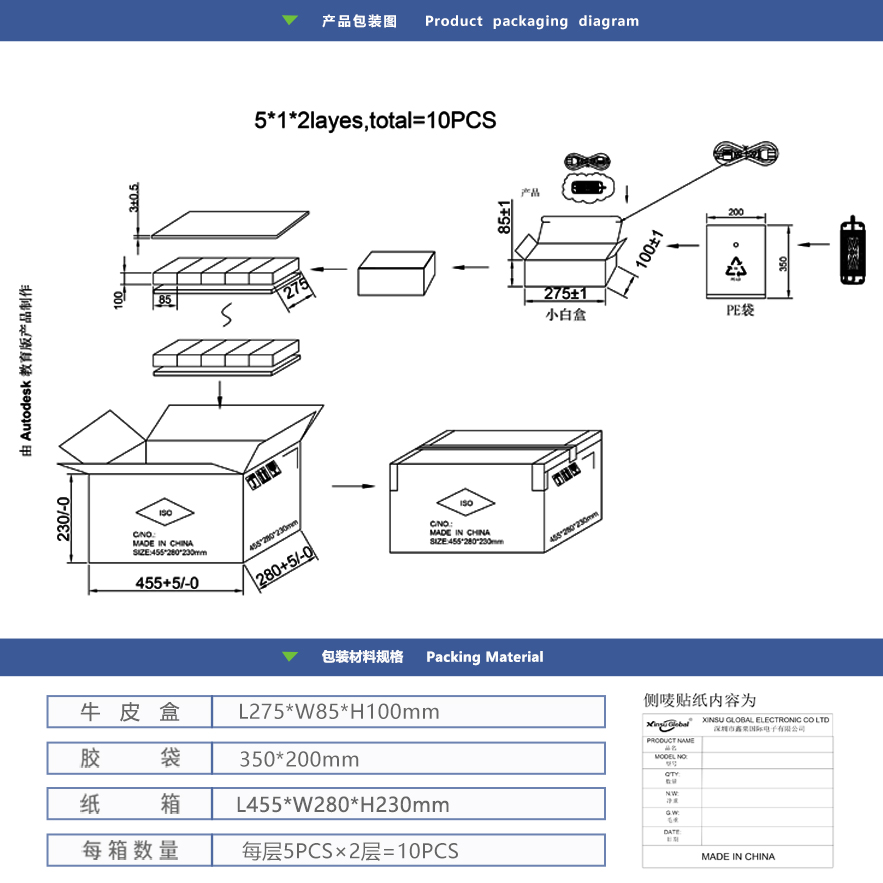

  • Packing
Product Electronics Parameter
Product name 30V 9A SMPS Power Supply for Racing Simulator 3D printer
Model number XSG3009000
AC input  Input Voltage range: 90～264Vac
Reted input voltage: 100～240Vac
InputFrequency Range: 47～62hz
Input current max: 5.0A
Inrush current: 140A Max/240V
Efficiency: 90% min
No load input power ≤0.5W
Leakage current: <0.75mA/240V
DC output Output voltage: 30.0V
Output voltage tolerance: 5%
Rated output current: 9.0A
Output current: 0～9.0A
Ripple and noise: <300mVp-p
CV or CC Optional
Current limited: Optional
LED indicator Green color
Protection Over current protection PASS
Over voltage protection
Short circuit protection
Over Temp protection
Environment Operating Temp: -20℃～+45℃
Storage Temp: -30℃～+70℃
Relative Humidity: 10%～90%
Vibration and shock Meet MIL-STD-810D
Safety Safety standard EN62368, EN60335, EN61558
EMC/EMI Meet FCC CLASS B,EN55032, EN55035
EMS EN61000－4－2
EN61000－4－3
EN61000－4－4
EN61000－4－5
A Harmonic source  Pass
HI-pot: Primary to Secondary 3KVAC,5mA,60s
Drop Test As per UL regulation
Burning test 100%,4-5 hours
Energy efficiency level CEC level VI, Doe VI
Life MTBF 50000 hours
Warranty 3 years
Certificate ETL, FCC, CE, UKCA, PSE

Model Name Rated output voltage range (VDC) Rated output current range (mA) Max. output power                    (W)
XSECxxxyyyyzz,
XSGxxxyyyyzz,
XSExxxyyyyzz,
XSECxxxyyyyyzz,
XSGxxxyyyyyzz,
XSExxxyyyyyzz,
XSECxxxyyyy,
XSGxxxyyyy,
XSExxxyyyy,
XSECxxxyyyyy,
XSGxxxyyyyy,
XSExxxyyyyy 		12.0-16.8 10000-20000 292
16.9-23.9 10000-18000 330
24.0-38.0 9000-15000 378
38.1-58.0 5500-9440 360
58.1-88.0 4000-6200 360
