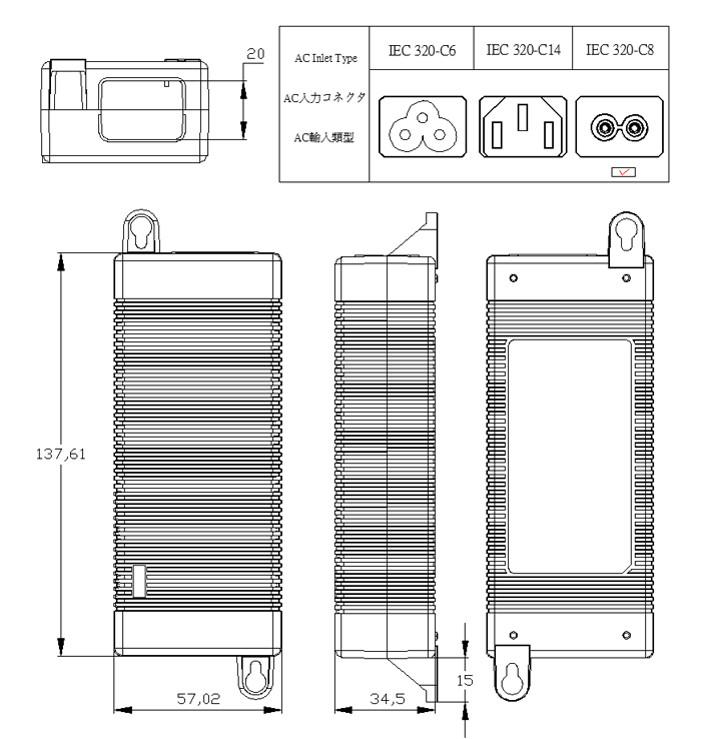

- Drawing
- Model List
- Packing
|
Electric Parameter
|
|
AC input
|
Input Voltage range:
|
90～264Vac
|
|
Reted input voltage:
|
100～240Vac
|
|
InputFrequency Range:
|
47～62hz
|
|
Input current max:
|
3A
|
|
Inrush current:
|
45A Max/240V
|
|
Efficiency:
|
>88%
|
|
No load input power
|
<0.21W
|
|
Leakage current:
|
<0.75mA/240V
|
|
DC output
|
Output voltage:
|
28V
|
|
Output voltage tolerance:
|
5%
|
|
Rated output current:
|
2.5A
|
|
Output current:
|
0～2.5A
|
|
Ripple and noise:
|
<180mVp-p
|
|
CV or CC
|
Optional
|
|
Current limited:
|
Optional
|
|
LED indicator
|
Green color
|
|
Protection
|
Over current protection
|
PASS
|
|
Over voltage protection
|
|
Short circuit protection
|
|
Over Temp protection
|
|
Environment
|
Operating Temp:
|
0℃～+45℃
|
|
Storage Temp:
|
-30℃～+70℃
|
|
Relative Humidity:
|
10%～90%
|
|
Vibration and shock
|
Meet MIL-STD-810D
|
|
Safety
|
Safety standard
|
EN60950,EN61558,EN60335
|
|
EMC/EMI
|
Meet FCC CLASS B,EN55022 CLASS B.
|
|
EMS
|
EN61000－4－2
|
|
EN61000－4－3
|
|
EN61000－4－4
|
|
EN61000－4－5
|
|
A Harmonic source
|
Pass
|
|
HI-pot: Primary to Secondary
|
3KVAC,5mA,60s
|
|
Drop Test
|
As per UL regulation
|
|
Burning test
|
100%,4-5 hours
|
|
Energy efficiency level
|
CEC level VI, Doe VI
|
|
Life
|
MTBF
|
50000 hours
|
|
Warranty
|
3 years
|
|
MODEL
|
INPUT VAC
|
OUTPUT W
|
OUTPUT V
|
OUTPUT mA
|
|
XSG2800300
|
100～240
|
8.4
|
28
|
300
|
|
XSG2800400
|
100～240
|
11.2
|
28
|
400
|
|
XSG2800500
|
100～240
|
14.0
|
28
|
500
|
|
XSG2800600
|
100～240
|
16.8
|
28
|
600
|
|
XSG2800700
|
100～240
|
19.6
|
28
|
700
|
|
XSG2800800
|
100～240
|
22.4
|
28
|
800
|
|
XSG2800900
|
100～240
|
25.2
|
28
|
900
|
|
XSG2801000
|
100～240
|
28.0
|
28
|
1000
|
|
XSG2801500
|
100～240
|
42.0
|
28
|
1500
|
|
XSG2802000
|
100～240
|
56.0
|
28
|
2000
|
|
XSG2802100
|
100～240
|
58.8
|
28
|
2100
|
|
XSG2802500
|
100～240
|
70.0
|
28
|
2500
|
|
XSG2803000
|
100～240
|
84.0
|
28
|
3000
|
|
XSG2803500
|
100～240
|
98.0
|
28
|
3500
|
|
XSG2804000
|
100～240
|
112.0
|
28
|
4000
|
|
XSG2804500
|
100～240
|
126.0
|
28
|
4500
|
|
XSG2805000
|
100～240
|
140.0
|
28
|
5000
|
|
XSG2805500
|
100-240
|
154.0
|
28
|
5500
|
|
XSG2806000
|
100～240
|
168.0
|
28
|
6000
|
|
XSG2806500
|
100～240
|
182.0
|
28
|
6500
|
|
XSG2807000
|
100～240
|
196.0
|
28
|
7000
|
|
XSG2807500
|
100～240
|
210.0
|
28
|
7500
|
