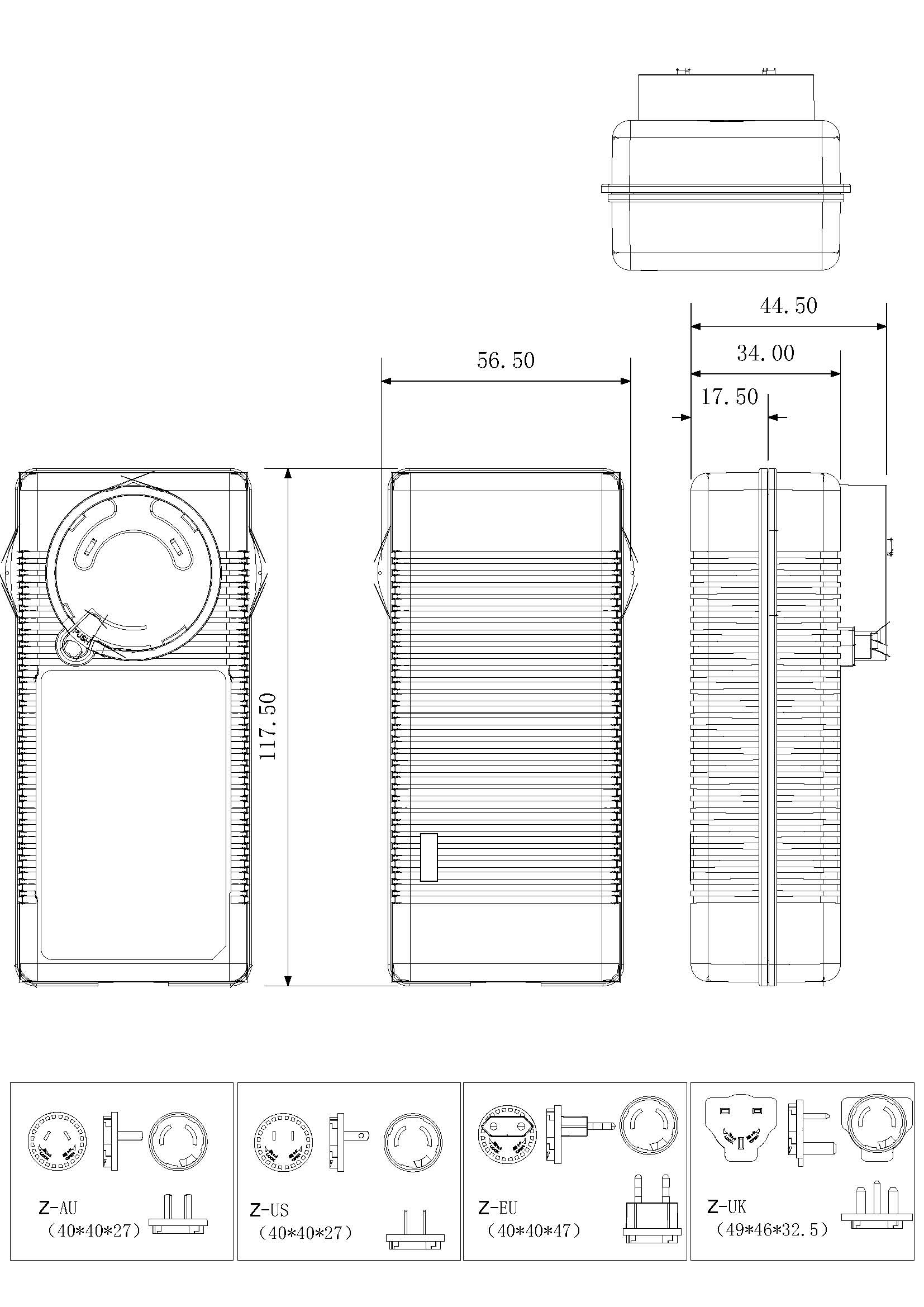

- Drawing
- Model List
- Packing
|
20V 2.5A Interchangeable AC Power Adaptor Electric Parameter
|
|
AC input
|
Input Voltage range:
|
90～264Vac
|
|
Reted input voltage:
|
100～240Vac
|
|
InputFrequency Range:
|
47～62hz
|
|
Input current max:
|
1.3A
|
|
Inrush current:
|
35A Max/240V
|
|
Efficiency:
|
>88%
|
|
No load input power
|
<0.21W
|
|
Leakage current:
|
<0.25mA/240V
|
|
DC output
|
Output voltage:
|
20V
|
|
Output voltage tolerance:
|
5%
|
|
Rated output current:
|
2.5A
|
|
Output current:
|
0～2.5A
|
|
Ripple and noise:
|
<100mVp-p
|
|
CV or CC
|
Optional
|
|
Current limited:
|
Optional
|
|
LED indicator
|
Green color
|
|
Protection
|
Over current protection
|
PASS
|
|
Over voltage protection
|
|
Short circuit protection
|
|
Over Temp protection
|
|
Environment
|
Operating Temp:
|
0℃～+45℃
|
|
Storage Temp:
|
-30℃～+70℃
|
|
Relative Humidity:
|
10%～90%
|
|
Vibration and shock
|
Meet MIL-STD-810D
|
|
Safety
|
Safety standard
|
EN60950,EN61558,EN60335
|
|
EMC/EMI
|
Meet FCC CLASS B,EN55022 CLASS B.
|
|
EMS
|
EN61000－4－2
|
|
EN61000－4－3
|
|
EN61000－4－4
|
|
EN61000－4－5
|
|
A Harmonic source
|
Pass
|
|
HI-pot: Primary to Secondary
|
3KVAC,5mA,60s
|
|
Drop Test
|
As per UL regulation
|
|
Burning test
|
100%,4-5 hours
|
|
Energy efficiency level
|
CEC level VI, Doe VI
|
|
Life
|
MTBF
|
50000 hours
|
|
Warranty
|
3 years
|
|
MODEL
|
INPUT VAC
|
OUTPUT W
|
OUTPUT V
|
OUTPUT mA
|
|
XSG2000300
|
100～240
|
6.0
|
20
|
300
|
|
XSG2000400
|
100～240
|
8.0
|
20
|
400
|
|
XSG2000500
|
100～240
|
10.0
|
20
|
500
|
|
XSG2000600
|
100～240
|
12.0
|
20
|
600
|
|
XSG2000700
|
100～240
|
14.0
|
20
|
700
|
|
XSG2000800
|
100～240
|
16.0
|
20
|
800
|
|
XSG2000900
|
100～240
|
18.0
|
20
|
900
|
|
XSG2001000
|
100～240
|
20.0
|
20
|
1000
|
|
XSG2001250
|
100～240
|
25.0
|
20
|
1250
|
|
XSG2001500
|
100～240
|
30.0
|
20
|
1500
|
|
XSG2001750
|
100～240
|
35.0
|
20
|
1750
|
|
XSG2002000
|
100～240
|
40.0
|
20
|
2000
|
|
XSG2002500
|
100～240
|
50.0
|
20
|
2500
|
|
XSG2002700
|
100～240
|
54.0
|
20
|
2700
|
|
XSG2003000
|
100～240
|
60.0
|
20
|
3000
|
|
XSG2003250
|
100～240
|
65.0
|
20
|
3250
|
|
XSG2003500
|
100～240
|
70.0
|
20
|
3500
|
|
XSG2004000
|
100～240
|
80.0
|
20
|
4000
|
|
XSG2004500
|
100～240
|
90.0
|
20
|
4500
|
|
XSG2005000
|
100～240
|
100.0
|
20
|
5000
|
|
XSG2005500
|
100～240
|
110.0
|
20
|
5500
|
|
XSG2006000
|
100～240
|
120.0
|
20
|
6000
|
|
XSG2006500
|
100～240
|
130.0
|
20
|
6500
|
|
XSG2007000
|
100～240
|
140.0
|
20
|
7000
|
|
XSG2007500
|
100～240
|
150.0
|
20
|
7500
|
|
XSG2008000
|
100～240
|
160.0
|
20
|
8000
|
|
XSG2008500
|
100～240
|
170.0
|
20
|
8500
|
|
XSG2009000
|
100～240
|
180.0
|
20
|
9000
|
|
XSG2009500
|
100～240
|
190.0
|
20
|
9500
|
