GS Certified 42.5V 1.5A Power Adapter Charger
XSG4251500

  • Technical Data

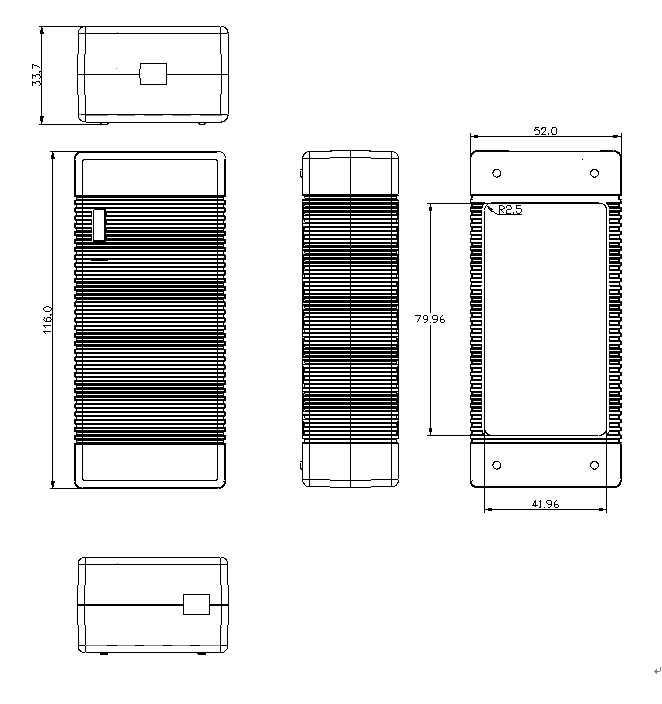

  • Drawing
  • Model List
  • Packing
Electric Parameter
AC input  Input Voltage range: 90~264Vac
Reted input voltage: 100~240Vac
InputFrequency Range: 47~62hz
Input current max: 1.3A
Inrush current: 35A Max/240V
Efficiency: >87%
No load Input power <0.5W
Leakage current: <0.25mA/240V
DC output Max charging voltage: 42.5V
Output voltage tolerance: 5%
Max charging current: 0~1.5A
Ripple and noise: <180mVp-p
Charging mode: 3- stage, CC,CV,trickle charging
Cut off current when charged full Optional
LED indicator Charging: Red, Charged full: Green
Charging current when charged full 0.2A
Protection Over current protection PASS
Over voltage protection
Short circuit protection
Over Temp protection
Anti-flow protection
Environment Operating Temp: 0℃~+45℃
Storage Temp: -30℃~+70℃
Relative Humidity: 10%~90%
Vibration and shock Meet MIL-STD-810D
Safety Safety standard EN60950,EN61558,EN60335
EMC/EMI Meet FCC CLASS B,EN55022 CLASS B.
EMS EN61000-4-2
EN61000-4-3
EN61000-4-4
EN61000-4-5
A Harmonic source  Pass
HI-pot: Primary to Secondary 3KVAC,5mA,60s
Drop Test As per UL regulation
Burning test 100%,4-5 hours
Life MTBF 50000 hours
Warranty 3 years
GS Certified 42.5V 1.5A Power Adapter Charger
MODEL INPUT VAC OUTPUT W OUTPUT V OUTPUT mA
XSG4250300 100~240 12.8 42.5 300
XSG4250400 100~240 17.0 42.5 400
XSG4250500 100~240 21.3 42.5 500
XSG4250600 100~240 25.5 42.5 600
XSG4250700 100~240 29.8 42.5 700
XSG4250800 100~240 34.0 42.5 800
XSG4250900 100~240 38.3 42.5 900
XSG4251000 100~240 42.5 42.5 1000
XSG4251250 100~240 53.1 42.5 1250
XSG4251500 100~240 63.8 42.5 1500
XSG4252000 100~240 85.0 42.5 2000
XSG4252500 100~240 106.3 42.5 2500
XSG4252750 100~240 116.9 42.5 2750
XSG4253000 100~240 127.5 42.5 3000
XSG4253500 100~240 148.8 42.5 3500
XSG4254000 100~240 170.0 42.5 4000
XSG4254500 100~240 191.3 42.5 4500
