60335-2-29 CE EMC LVD Europe 36.5V 10A Lifepo4 Battery Charger
XSG36510000

  • Technical Data

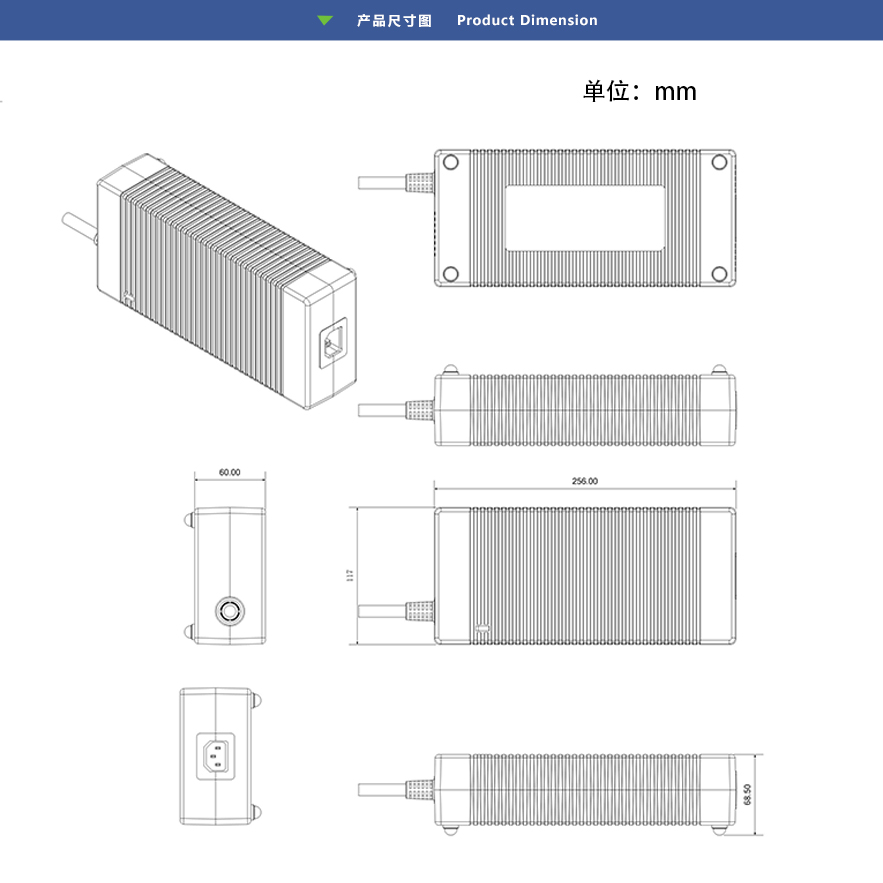

  • Drawing
  • Model List

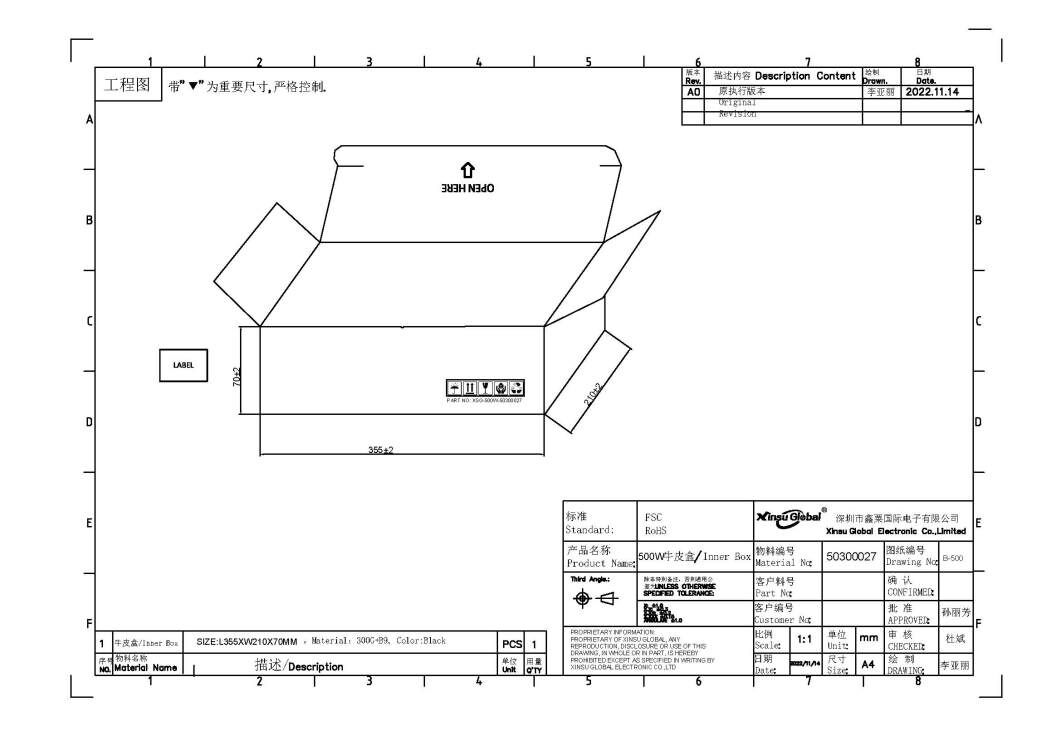

  • Packing
Electric Parameter
AC input  Input Voltage range: 90~264Vac
Reted input voltage: 100~240Vac
InputFrequency Range: 47~62hz
Input current max: 10A
Inrush current: 170A Max/240V
Efficiency: ≥90%
No load Input power ≤0.5W
Leakage current: <0.75mA/240V
DC output Max charging voltage: 36.5V
Output voltage tolerance: 5%
Max charging current: 0~10A
Ripple and noise: <250mVp-p
Charging mode: 3- stage, CC,CV,trickle charging
Cut off current when charged full Optional
LED indicator Charging: Red, Charged full: Green
Charging current when charged full 1A
Protection Over current protection PASS
Over voltage protection
Short circuit protection
Over Temp protection
Anti-flow protection
Environment Operating Temp: 0℃~+45℃
Storage Temp: -30℃~+70℃
Relative Humidity: 10%~90%
Vibration and shock Meet MIL-STD-810D
Safety Safety standard EN62368,EN61558,EN60335,EN60335-2-29
EMC/EMI Meet FCC CLASS B,EN55022 CLASS B.
EMS EN61000-4-2
EN61000-4-3
EN61000-4-4
EN61000-4-5
A Harmonic source  Pass
HI-pot: Primary to Secondary 3KVAC,5mA,60s
Drop Test As per UL regulation
Burning test 100%,4-5 hours
Life MTBF 50000 hours
Warranty 3 years

MODEL INPUT VAC OUTPUT W OUTPUT V OUTPUT mA
XSG3650300 100~240 11.0 36.5 300
XSG3650400 100~240 14.6 36.5 400
XSG3650500 100~240 18.3 36.5 500
XSG3650600 100~240 21.9 36.5 600
XSG3650700 100~240 25.6 36.5 700
XSG3650800 100~240 29.2 36.5 800
XSG3650900 100~240 32.9 36.5 900
XSG3651000 100~240 36.5 36.5 1000
XSG3651250 100~240 45.6 36.5 1250
XSG3651500 100~240 54.8 36.5 1500
XSG3651750 100~240 63.9 36.5 1750
XSG3652000 100~240 73.0 36.5 2000
XSG3652500 100~240 91.3 36.5 2500
XSG3653000 100~240 109.5 36.5 3000
XSG3653500 100~240 127.8 36.5 3500
XSG3654000 100~240 146.0 36.5 4000
XSG3654500 100~240 164.3 36.5 4500
XSG3655000 100~240 182.5 36.5 5000
XSG3655500 100~240 200.8 36.5 5500
XSG36510000 100~240 365.0 36.5 10000
