50.4V 6A battery charger with UL cUL FCC Certifications
XSG5046000

  • Technical Data

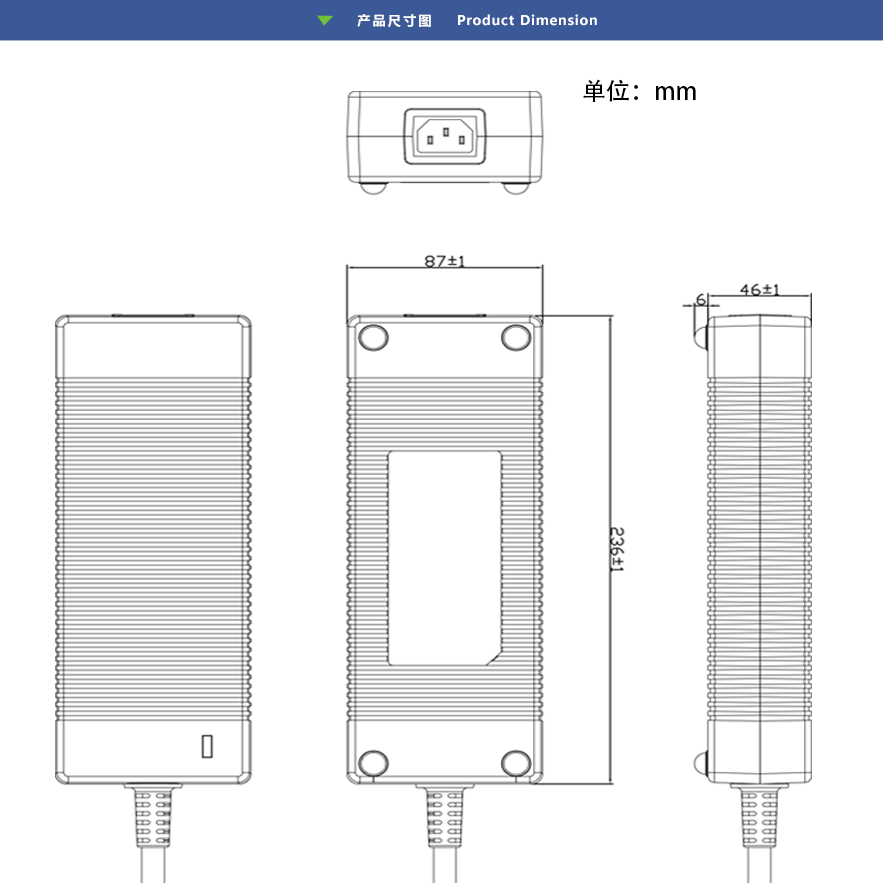

  • Drawing
  • Model List

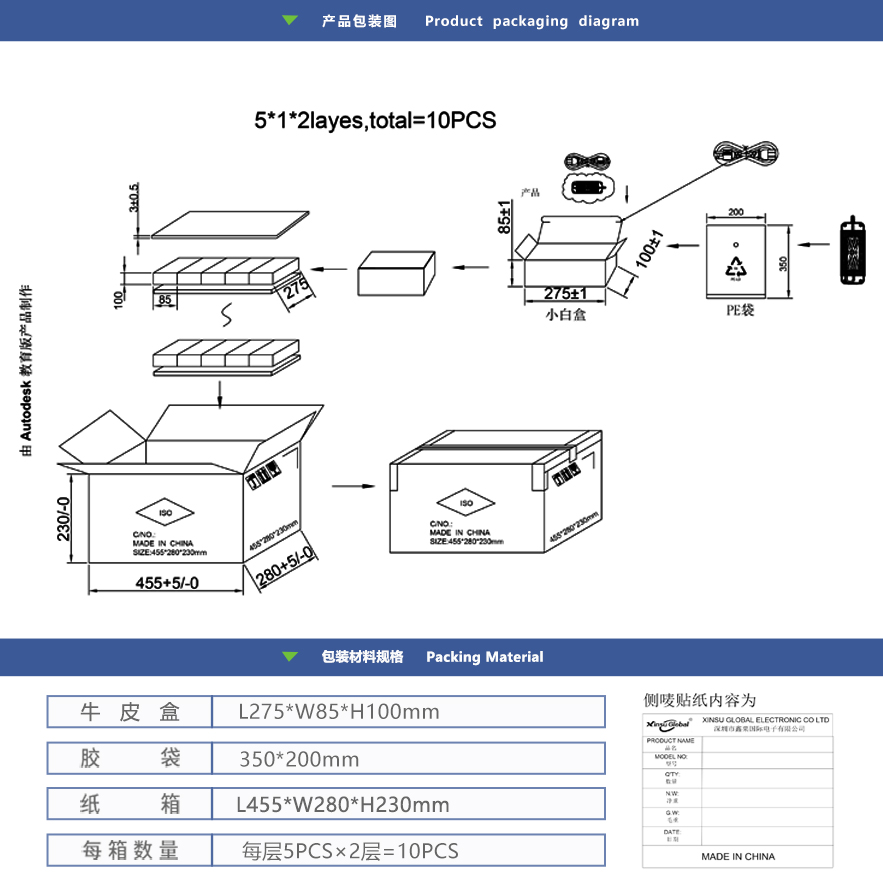

  • Packing
Electric Parameter
AC input  Input Voltage range: 90~264Vac
Reted input voltage: 100~240Vac
InputFrequency Range: 47~62hz
Input current max: 5A
Inrush current: 170A Max/240V
Efficiency: ≥90%
No load Input power ≤0.5W

Leakage current: <0.75mA/240V
DC output Max charging voltage: 50.4V
Output voltage tolerance: 3%
Max charging current: 0~6A
Ripple and noise: ≤250mVp-p
Charging mode: 3- stage, CC,CV,trickle charging
Cut off current when charged full Optional
LED indicator Charging: Red, Charged full: Green
Charging current when charged full 0.1C
Protection Over current protection PASS
Over voltage protection
Short circuit protection
Over Temp protection
Anti-flow protection
Environment Operating Temp: 0℃~+45℃
Storage Temp: -30℃~+70℃
Relative Humidity: 10%~90%
Vibration and shock Meet MIL-STD-810D
Safety Safety standard EN62368,EN61558,EN60335,EN60335-2-29
EMC/EMI Meet FCC CLASS B,EN55022 CLASS B.
EMS EN61000-4-2
EN61000-4-3
EN61000-4-4
EN61000-4-5
A Harmonic source  Pass
HI-pot: Primary to Secondary 3KVAC,5mA,60s
Drop Test As per UL regulation
Burning test 100%,4-5 hours
Life MTBF 50000 hours
Warranty 3 years
MODEL INPUT VAC OUTPUT W OUTPUT V OUTPUT mA
XSG5040300 100~240 15.1 50.4 300
XSG5040400 100~240 20.2 50.4 400
XSG5040500 100~240 25.2 50.4 500
XSG5040600 100~240 30.2 50.4 600
XSG5040700 100~240 35.3 50.4 700
XSG5040800 100~240 40.3 50.4 800
XSG5040900 100~240 45.4 50.4 900
XSG5041000 100~240 50.4 50.4 1000
XSG5041250 100~240 63.0 50.4 1250
XSG5041500 100~240 75.6 50.4 1500
XSG5042000 100~240 100.8 50.4 2000
XSG5042500 100~240 126.0 50.4 2500
XSG5042750 100~240 138.6 50.4 2750
XSG5043000 100~240 151.2 50.4 3000
XSG5043500 100~240 176.4 50.4 3500
XSG5046000 100~240 302.4 50.4 6000
