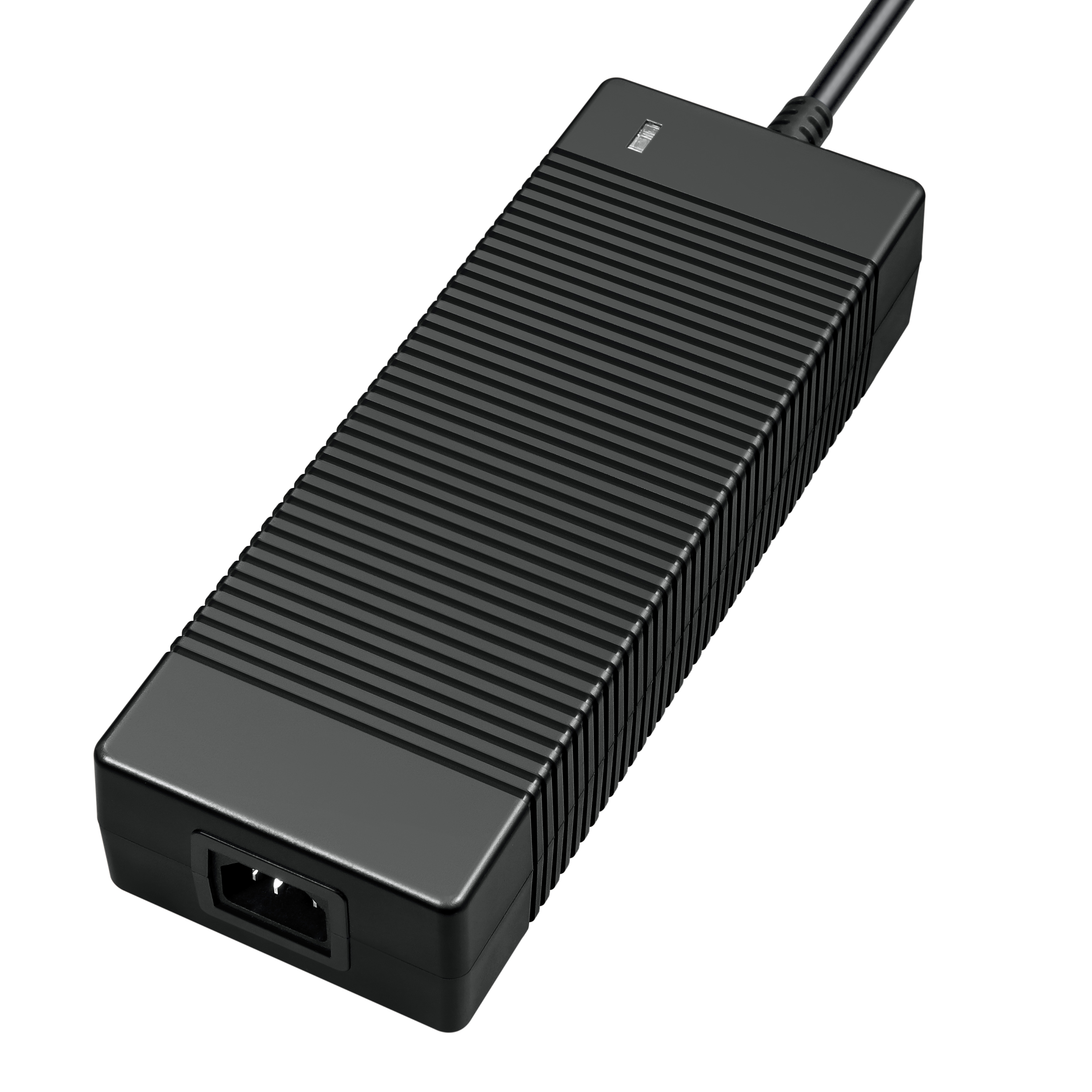

3S li-ion battery charger 12.6V 20A for industrial computer

XSG12620000

Electric Parameter

AC input

Input Voltage range:

90～264Vac

Reted input voltage:

100～240Vac

InputFrequency Range:

47～62hz

Input current max:

5A

Inrush current:

60A Max/240V

Efficiency:

>90%

No load Input power

<0.5W

Leakage current:

<0.75mA/240V

DC output

Max charging voltage:

12.6V

Output voltage tolerance:

5%

Max charging current:

0～20A

Ripple and noise:

<300mVp-p

Charging mode:

3- stage, CC,CV,trickle charging

Cut off current when charged full

Option

LED indicator

Charging: Red, Charged full: Green

Charging current when charged full

2A

Protection

Over current protection

PASS

Over voltage protection

Over current protection

Short circuit protection

Reverse polarity protection

Over Temp protection

Anti-flow protection

Environment

Operating Temp:

-20℃～+45℃

Storage Temp:

-30℃～+70℃

Relative Humidity:

10%～90%

Vibration and shock

Meet MIL-STD-810D

Safety

Safety standard

EN62368,EN61558,EN60335

EMC/EMI

Meet FCC CLASS B,EN55022 CLASS B.

EMS

EN61000－4－2

EN61000－4－3

EN61000－4－4

EN61000－4－5

A Harmonic source

Pass

HI-pot: Primary to Secondary

3KVAC,5mA,60s

Drop Test

As per UL regulation

Burning test

100%,4-5 hours

Life

MTBF

50000 hours

Warranty

3 years
