- Technical Data

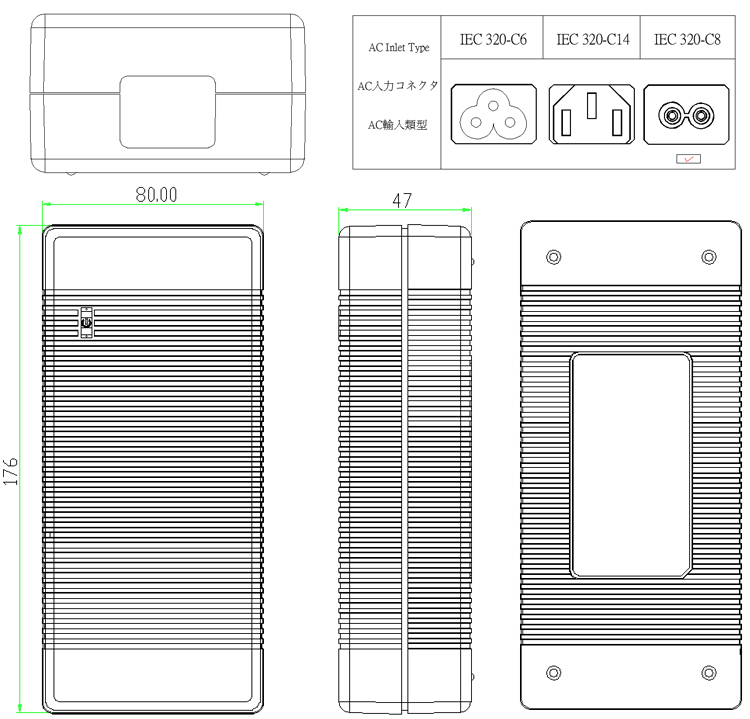

- Drawing
- Model List
- Packing
|
Electric
Parameter
|
|
AC input
|
Input Voltage range:
|
90～264Vac
|
|
Reted input voltage:
|
100～240Vac
|
|
InputFrequency Range:
|
47～62hz
|
|
Input current max:
|
3A
|
|
Inrush current:
|
35A Max/240V
|
|
Efficiency:
|
>88%
|
|
No load input power
|
<0.21W
|
|
Leakage current:
|
<0.25mA/240V
|
|
DC output
|
Output voltage:
|
16.8V
|
|
Output voltage tolerance:
|
5%
|
|
Rated output current:
|
9.5A
|
|
Output current:
|
0～9.5A
|
|
Ripple and noise:
|
<250mVp-p
|
|
CV or CC
|
Optional
|
|
Current limited:
|
Optional
|
|
LED indicator
|
Green color
|
|
Protection
|
Over current
protection
|
PASS
|
|
Over voltage protection
|
|
Short circuit protection
|
|
Over Temp protection
|
|
Environment
|
Operating Temp:
|
0℃～+45℃
|
|
Storage Temp:
|
-30℃～+70℃
|
|
Relative Humidity:
|
10%～90%
|
|
Vibration and shock
|
Meet MIL-STD-810D
|
|
Safety
|
Safety standard
|
EN60950,EN61558,EN60335
|
|
EMC/EMI
|
Meet FCC CLASS
B,EN55022 CLASS B.
|
|
EMS
|
EN61000－4－2
|
|
EN61000－4－3
|
|
EN61000－4－4
|
|
EN61000－4－5
|
|
A Harmonic source
|
Pass
|
|
HI-pot: Primary to Secondary
|
3KVAC,5mA,60s
|
|
Drop Test
|
As per UL regulation
|
|
Burning test
|
100%,4-5 hours
|
|
Energy efficiency level
|
CEC level VI, Doe VI
|
|
Life
|
MTBF
|
50000 hours
|
|
Warranty
|
3 years
|
|
MODEL
|
INPUT VAC
|
OUTPUT W
|
OUTPUT V
|
OUTPUT mA
|
|
XSG1680300
|
100～240
|
5.0
|
16.8
|
300
|
|
XSG1680400
|
100～240
|
6.7
|
16.8
|
400
|
|
XSG1680500
|
100～240
|
8.4
|
16.8
|
500
|
|
XSG1680600
|
100～240
|
10.1
|
16.8
|
600
|
|
XSG1680700
|
100～240
|
11.8
|
16.8
|
700
|
|
XSG1680800
|
100～240
|
13.4
|
16.8
|
800
|
|
XSG1680900
|
100～240
|
15.1
|
16.8
|
900
|
|
XSG1681000
|
100～240
|
16.8
|
16.8
|
1000
|
|
XSG1681200
|
100～240
|
20.2
|
16.8
|
1200
|
|
XSG1681500
|
100～240
|
25.2
|
16.8
|
1500
|
|
XSG1681800
|
100～240
|
30.2
|
16.8
|
1800
|
|
XSG1682000
|
100～240
|
33.6
|
16.8
|
2000
|
|
XSG1682500
|
100～240
|
42.0
|
16.8
|
2500
|
|
XSG1683000
|
100～240
|
50.4
|
16.8
|
3000
|
|
XSG1683500
|
100～240
|
58.8
|
16.8
|
3500
|
|
XSG1683750
|
100～240
|
63.0
|
16.8
|
3750
|
|
XSG1684000
|
100～240
|
67.2
|
16.8
|
4000
|
|
XSG1684500
|
100～240
|
75.6
|
16.8
|
4500
|
|
XSG1685000
|
100～240
|
84.0
|
16.8
|
5000
|
|
XSG1685500
|
100～240
|
92.4
|
16.8
|
5500
|
|
XSG1686000
|
100～240
|
100.8
|
16.8
|
6000
|
|
XSG1686500
|
100～240
|
109.2
|
16.8
|
6500
|
|
XSG1687000
|
100～240
|
117.6
|
16.8
|
7000
|
|
XSG1687500
|
100～240
|
126.0
|
16.8
|
7500
|
|
XSG1688000
|
100～240
|
134.4
|
16.8
|
8000
|
|
XSG1688500
|
100～240
|
142.8
|
16.8
|
8500
|
|
XSG1689000
|
100～240
|
151.2
|
16.8
|
9000
|
|
XSG1689500
|
100～240
|
159.6
|
16.8
|
9500
|
|
XSG16810000
|
100～240
|
168.0
|
16.8
|
10000
|
