Xinsu Global Electronic Co., Limited

15S Lithium Battery Pack Charger 63V 2.75A
XSG6302750

  • Technical Data

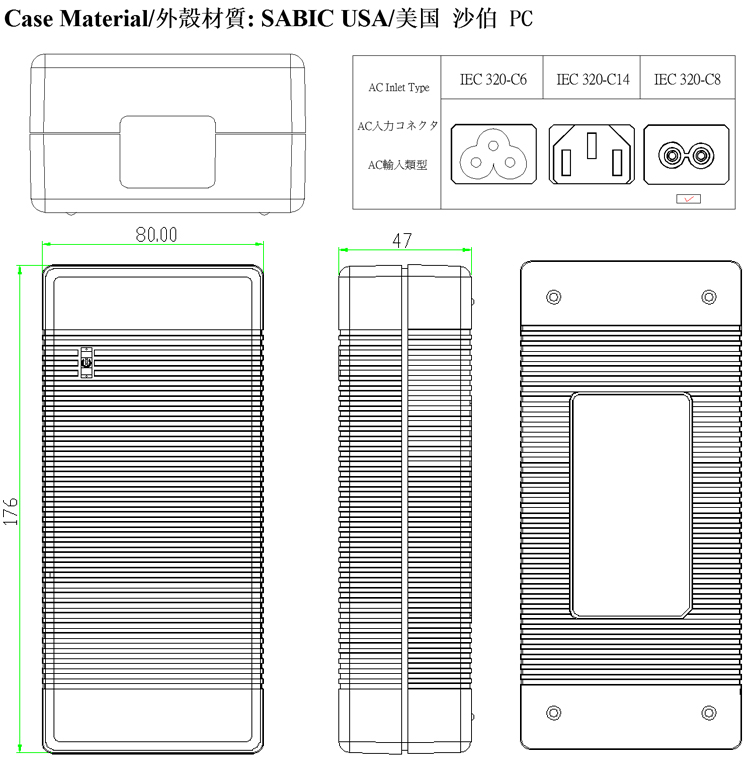

  • Drawing
  • Model List
  • Packing
Electric Parameter
AC input  Input Voltage range: 90~264Vac
Reted input voltage: 100~240Vac
InputFrequency Range: 47~62hz
Input current max: 3A
Inrush current: 60A Max/240V
Efficiency: >87%
No load Input power <0.5W
Leakage current: <0.25mA/240V
DC output Max charging voltage: 63V
Output voltage tolerance: 5%
Max charging current: 0~2.75A
Ripple and noise: <250mVp-p
Charging mode: 3- stage, CC,CV,trickle charging
Cut off current when charged full Optional
LED indicator Charging: Red, Charged full: Green
Charging current when charged full 0.275A
Protection Over current protection PASS
Over voltage protection
Short circuit protection
Over Temp protection
Anti-flow protection
Environment Operating Temp: 0℃~+45℃
Storage Temp: -30℃~+70℃
Relative Humidity: 10%~90%
Vibration and shock Meet MIL-STD-810D
Safety Safety standard EN60950,EN61558,EN60335
EMC/EMI Meet FCC CLASS B,EN55022 CLASS B.
EMS EN61000-4-2
EN61000-4-3
EN61000-4-4
EN61000-4-5
A Harmonic source  Pass
HI-pot: Primary to Secondary 3KVAC,5mA,60s
Drop Test As per UL regulation
Burning test 100%,4-5 hours
Life MTBF 50000 hours
Warranty 3 years
15S Lithium Battery Pack Charger 63V 2.75A
MODEL INPUT VAC OUTPUT W OUTPUT V OUTPUT mA
XSG6300300 100~240 18.9 63 300
XSG6300400 100~240 25.2 63 400
XSG6300500 100~240 31.5 63 500
XSG6300600 100~240 37.8 63 600
XSG6300700 100~240 44.1 63 700
XSG6300800 100~240 50.4 63 800
XSG6300900 100~240 56.7 63 900
XSG6301000 100~240 63.0 63 1000
XSG6301250 100~240 78.8 63 1250
XSG6301500 100~240 94.5 63 1500
XSG6301750 100~240 110.3 63 1750
XSG6302000 100~240 126.0 63 2000
XSG6302250 100~240 141.8 63 2250
XSG6302500 100~240 157.5 63 2500
XSG6302750 100~240 173.3 63 2750
XSG6303000 100~240 189.0 63 3000
XSG6303250 100~240 204.8 63 3250
