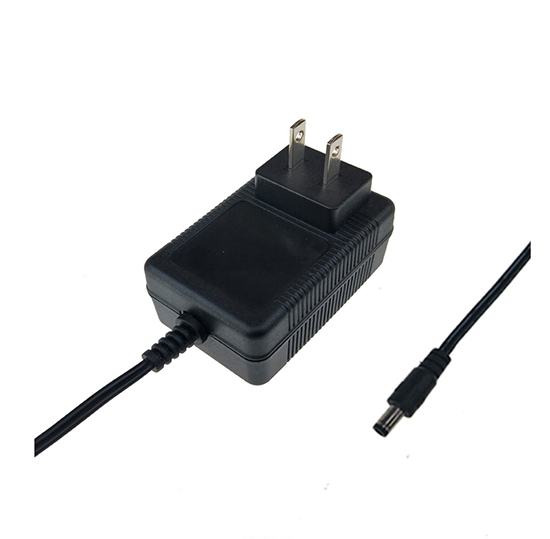

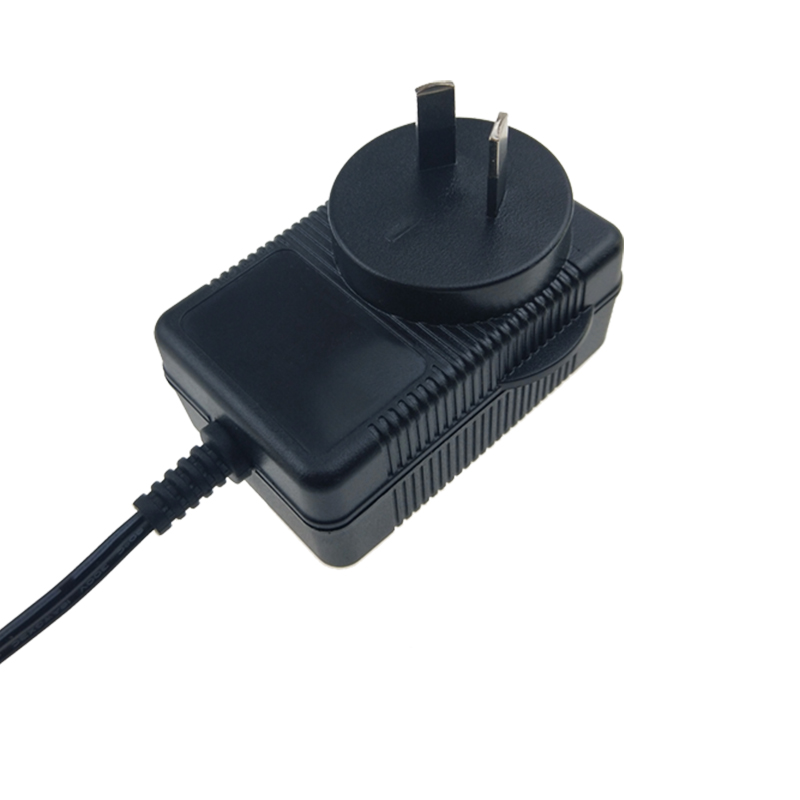

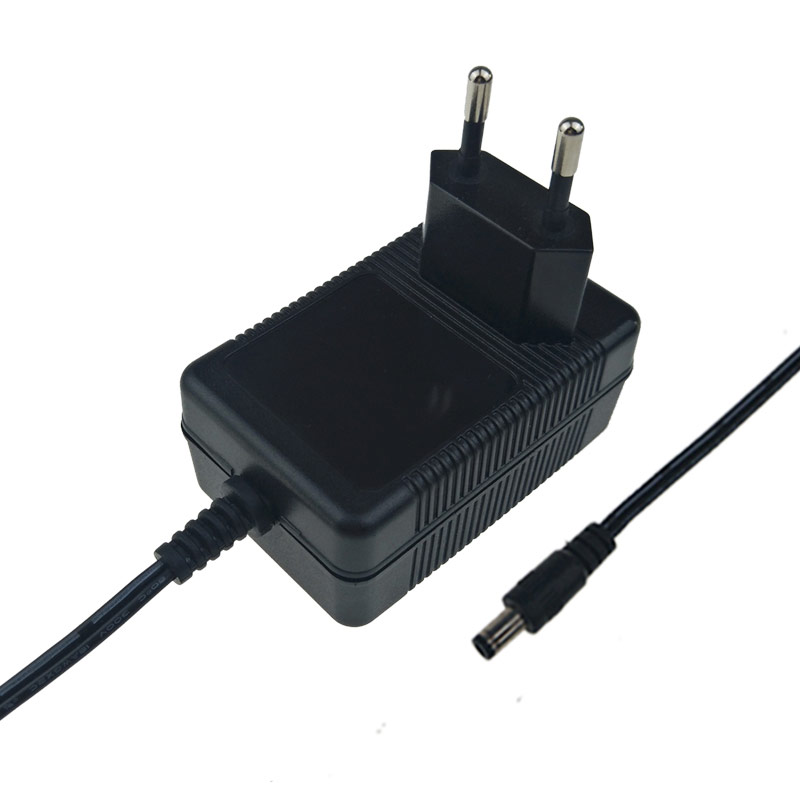

IEC61010-1 EN61010-1 10V 2A switching power supply adapter
XSG1002000

Power Adapter
Battery Charger
Update
contact-now download
  • Technical Data

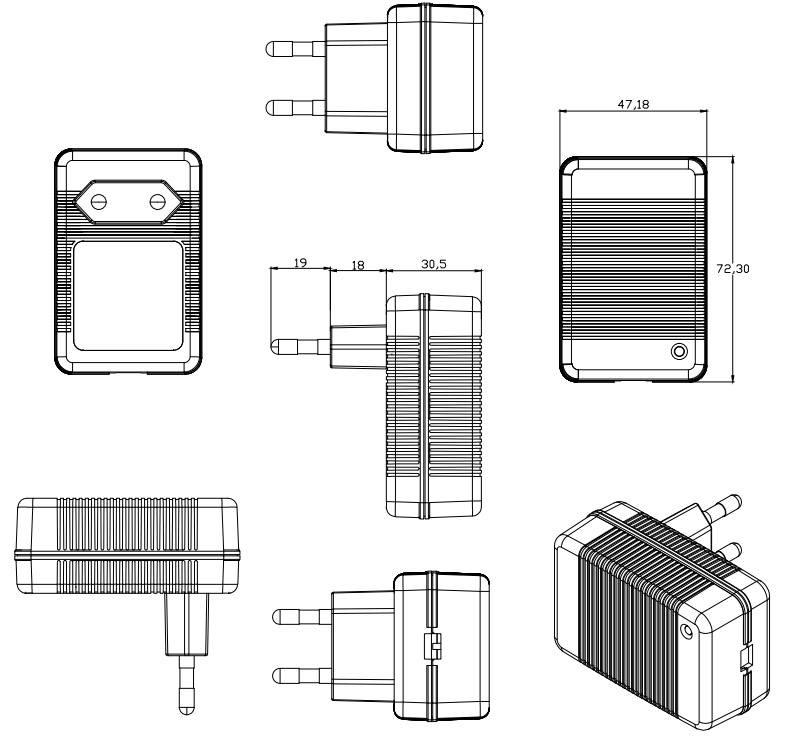

  • Drawing
  • Model List
  • Packing

Electric Parameter
AC input  Input Voltage range: 90～264Vac
Reted input voltage: 100～240Vac
InputFrequency Range: 47～62hz
Input current max: 1.3A
Inrush current: 35A Max/240V
Efficiency: >88%
No load input power <0.1W
Leakage current: <0.25mA/240V
DC output Output voltage: 10V
Output voltage tolerance: 5%
Rated output current: 2A
Output current: 0～2A
Ripple and noise: ≤120mVp-p
CV or CC Optional
Current limited: Optional
LED indicator Green color
Protection Over current protection PASS
Over voltage protection
Short circuit protection
Over Temp protection
Environment Operating Temp: 0℃～+45℃
Storage Temp: -30℃～+70℃
Relative Humidity: 10%～90%
Vibration and shock Meet MIL-STD-810D
Safety Safety standard EN60950,EN61558,EN60335.IEC61010,EN61010
EMC/EMI Meet FCC CLASS B,EN55022 CLASS B.
EMS EN61000－4－2
EN61000－4－3
EN61000－4－4
EN61000－4－5
A Harmonic source  Pass
HI-pot: Primary to Secondary 3KVAC,5mA,60s
Drop Test As per UL regulation
Burning test 100%,4-5 hours
Energy efficiency level CEC level VI, Doe VI
Life MTBF 50000 hours
Warranty 2 years

IEC61010-1 EN61010-1 10V 2A switching power supply adapter
MODEL INPUT VAC OUTPUT W OUTPUT V OUTPUT mA
XSG1000300 100～240 3.0 10 300
XSG1000400 100～240 4.0 10 400
XSG1000500 100～240 5.0 10 500
XSG1000600 100～240 6.0 10 600
XSG1000700 100～240 7.0 10 700
XSG1000800 100～240 8.0 10 800
XSG1000900 100～240 9.0 10 900
XSG1001000 100～240 10.0 10 1000
XSG1001500 100～240 15.0 10 1500
XSG1002000 100～240 20.0 10 2000
XSG1002500 100～240 25.0 10 2500
XSG1003000 100～240 30.0 10 3000
XSG1003500 100～240 35.0 10 3500
XSG1004000 100～240 40.0 10 4000
XSG1004500 100～240 45.0 10 4500
XSG1005000 100～240 50.0 10 5000
XSG1005500 100～240 55.0 10 5500
XSG1006000 100～240 60.0 10 6000
XSG1006500 100～240 65.0 10 6500
XSG1007000 100～240 70.0 10 7000
XSG1007500 100～240 75.0 10 7500
XSG1008000 100～240 80.0 10 8000
XSG1008500 100～240 85.0 10 8500
XSG1009000 100～240 90.0 10 9000
XSG1009500 100～240 95.0 10 9500
XSG10010000 100～240 100.0 10 10000
XSG10011000 100-240 110.0 10 11000
